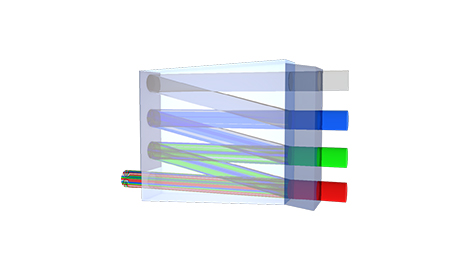

Lenzed Z-block
:
XVPO-0004-00 / Mirror type / 1260nm
| Product No. | XVPO0001-00 |
| Type | Mirror type |
| Center WL(λ㎚) | 1260 |
| AR coating WL(λnm) | 1250~1350 |
| Dimension(㎜) | 4.01X3.4XT1.0 |

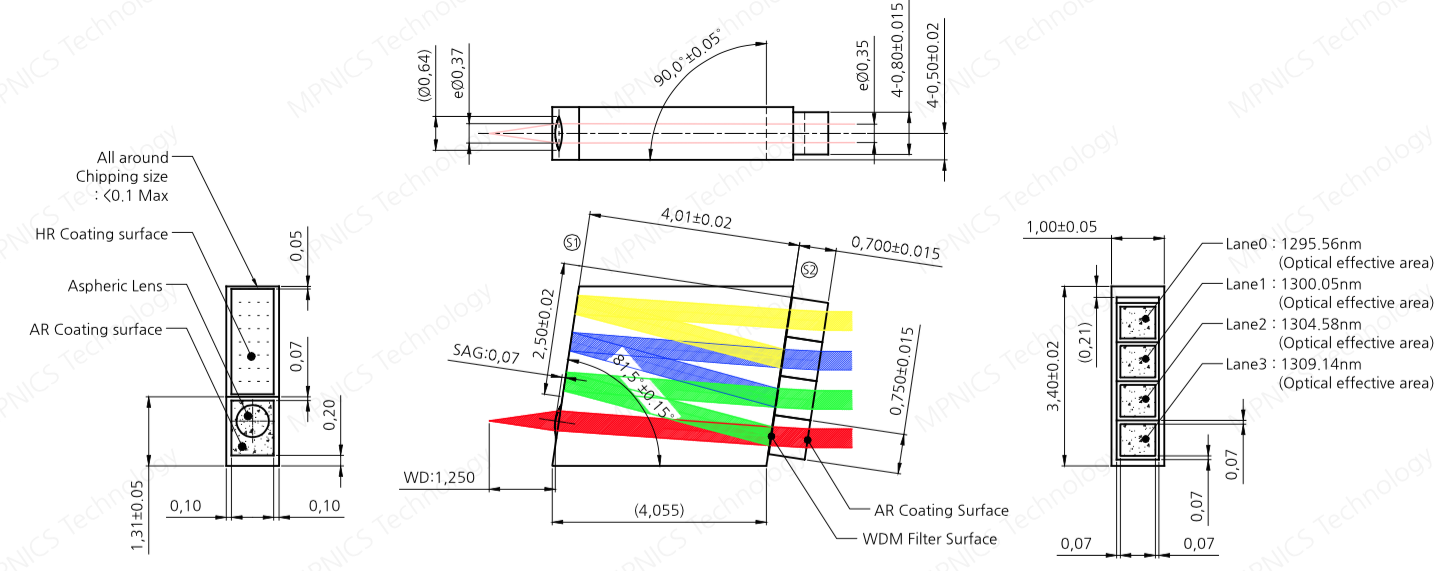

XVPO-0004-00 / Mirror type / 1260nm
WL=Wave Length, EFL=Effective Focal Length, M=Magnification, L1=WD, BD=Beam Diameter, P=Pitch, NOL=Number of lenses
| Product No. | Type | Center WL(λnm) | AR coating WL(λnm) |
| XVPO-0004-00 | Mirror | 1,260 | 1250~1350 |
