产品分类
微凤凰运用独有的技术开发和标准化工艺，以最佳的设计满足客户的要求，
以最低价格提供满足国际质量体系标准的产品。
微型方形透镜
通过微凤凰独有的微成型工艺在最短时间内提供满足客户要求的最佳设计的最高性价比产品。
– Optimal performance using Aspheric shape
– Low cost and high productivity and superior reliability
– Low lens surface roughness and Low aspheric form error
– Square lenses for fiber coupling and optical switching
– Lens profiles : Bi-convex, aspherics
– High Transmission with Low Insertion Loss
产品参数

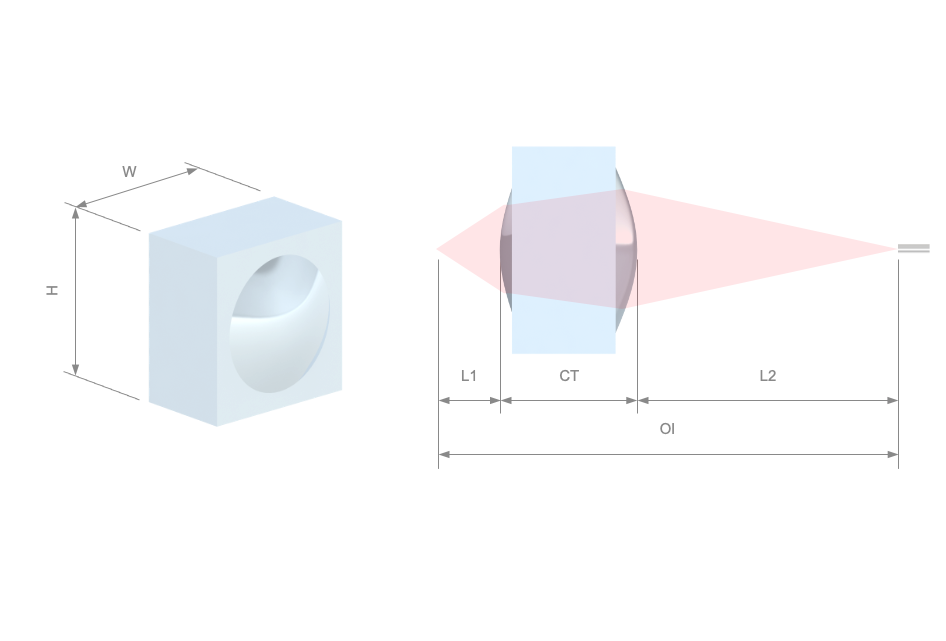

Collimator type
| Lens configuration | Glass Molded Square Lens |
| Material | Optical glass (RoHS compliant) |
| Lens size | 0.5 ㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | 23±5℃ |
| Storage humidity | 45±5% |

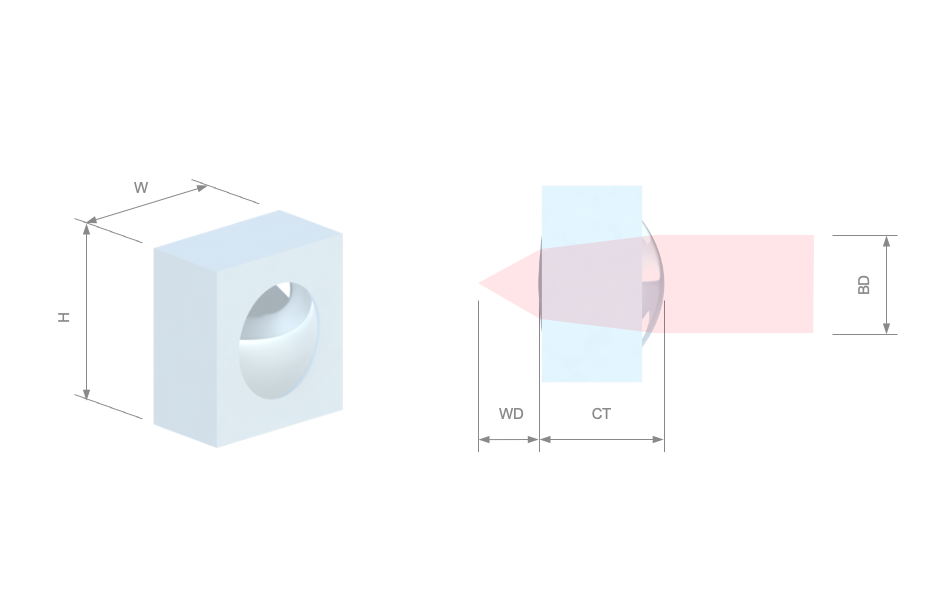

Coupling type
| Lens configuration | Glass Molded Square Lens |
| Material | Optical glass (RoHS compliant) |
| Lens size | 0.5 ㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Storage temperature | -40℃ to 100℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | -40℃ to 100℃ |
如果您需要详细的产品清单，请使用 MPNICS Store。
