Micro Square Lens

Micro Square Lens

Using MPNICS’s unique micro molding method, we offer new customized design in shortest lead-time at lowest cost.

  • Optimal performance using Aspheric shape
  • Low cost and high productivity and superior reliability
  • Low lens surface roughness and Low aspheric form error

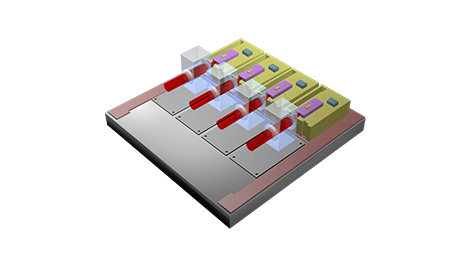

  • Square lenses for fiber coupling and optical switching
  • Lens profiles : Bi-convex, aspherics
  • High Transmission with Low Insertion Loss
Part number
Type
WL
(λnm)
EFL
(mm)
BD
(mm)
L1
(mm)
L2
(mm)
OI
(mm)
M
NAO
NA
Size
W×H×CT (mm)
SGFD-0019-00 Coupling 520 0.146 0.000 0.030 0.580 0.860 2.984 0.300 0.100 0.3*0.42*0.25
SGFD-0033-00 Coupling 1550 0.516 0.000 0.250 1.550 2.700 2.874 0.500 0.174 0.80*1.60*0.90
SGFD-0032-00 Coupling 1310 0.324 0.000 0.106 1.759 2.382 4.496 0.500 0.111 0.7*1.00*0.517
SGFD-0031-00 Coupling 1550 0.582 0.000 0.450 3.450 4.600 5.290 0.500 0.095 1.00*1.00*0.70
SGFD-0028-00 Coupling 1310 0.528 0.000 0.250 2.950 4.000 5.000 0.500 0.100 1.00*1.00*0.80
SGFD-0027-00 Coupling 1550 0.348 0.000 0.400 1.100 1.850 2.597 0.130 0.338 1.30*1.30*0.35
SGFD-0026-00 Coupling 1550 0.457 0.000 0.250 1.430 2.450 2.874 0.500 0.174 1.60*0.80*0.77
SGFD-0024-00 Coupling 1310 0.890 0.000 1.700 1.700 4.000 0.893 0.210 0.235 2.03*2.03*0.60
SGFD-0011 Coupling 1310 0.416 0.000 0.300 1.040 2.040 1.500 0.171 0.114 0.7*0.93*0.7
SGFD-0010-00 Coupling 1310 0.530 0.000 0.400 2.400 3.300 3.530 0.340 0.096 0.7*0.93*0.5
SGFD-0002-00 Coupling 1310 1.142 0.000 2.200 1.700 5.100 1.078 0.209 0.193 1.36*1.36*1.2
SGFD-0001 Coupling 1550 0.510 0.000 0.368 1.532 2.700 2.658 0.480 0.180 1.0*1.0*0.8
SGCU-0001-00 Collimator 1310 1.838 0.700 1.557 0.000 0.000 0.000 0.218 0.000 1.0*1.6*0.5
SGCD-0087-00 Collimator 1310 1.700 0.600 0.000 1.300 0.000 0.000 0.000 0.177 1.44*0.6*0.71
SGCD-0085-00 Collimator 1310 0.464 0.140 0.750 0.000 0.000 0.000 0.140 0.000 1.0*1.0*0.65
SGCD-0084-00 Collimator 1550 6.560 2.200 5.920 0.000 0.000 0.000 0.000 0.170 2.5*2.5*1.0
SGCD-0080-00 Collimator 1550 0.687 1.020 0.600 0.000 0.000 0.000 0.580 0.000 1.2*1.2*0.75
SGCD-0079-00 Collimator 1550 0.464 0.430 0.160 0.000 0.000 0.000 0.500 0.000 0.80*1.60*0.72
SGCD-0075-00 Collimator 1550 1.138 0.550 0.772 0.000 0.000 0.000 0.000 0.240 2.00*2.00*0.65
SGCD-0067-00 Collimator 1310 0.450 0.630 0.210 0.000 0.000 0.000 0.700 0.000 1.00*1.00*0.75
SGCD-0066-00 Collimator 1310 1.548 0.400 1.200 0.000 0.000 0.000 0.129 0.000 1.3*1.3*0.62
SGCD-0064-00 Collimator 1550 0.350 0.420 0.160 0.000 0.000 0.000 0.600 0.000 1.0*1.0*0.61
SGCD-0062-00 Collimator 1550 2.778 1.000 2.300 0.000 0.000 0.000 0.180 0.000 1.2*1.2*0.85
SGCD-0061-00 Collimator 1310 0.300 0.160 0.300 0.000 0.000 0.000 0.250 0.000 0.80*0.80*0.40
SGCD-0060-00 Collimator 1310 1.177 0.700 0.813 0.000 0.000 0.000 0.240 0.000 0.6*1.44*0.65
SGCD-0055-00 Collimator 1550 2.417 0.700 2.100 0.000 0.000 0.000 0.000 0.140 1.80*1.10*0.70
SGCD-0059-00 Collimator 1310 1.404 0.400 0.989 0.000 0.000 0.000 0.140 0.000 1.00*0.80*0.80
SGCD-0054-00 Collimator 1550 1.990 0.680 1.600 0.000 0.000 0.000 1.70 0.000 2.0*2.0*0.69
SGCD-0053-00 Collimator 1310 1.700 0.600 1.300 0.000 0.000 0.000 0.177 0.000 0.6*1.44*0.71
SGCD-0052-00 Collimator 1550 0.300 0.600 0.180 0.000 0.000 0.000 0.700 0.000 1.0*1.0*0.8
SGCD-0051-00 Collimator 1310 0.457 0.060 0.000 0.000 0.000 0.000 0.094 0.000 1.0*1.0*0.55
SGCD-0050-00 Collimator 1550 0.500 0.580 0.174 0.000 0.000 0.000 0.580 0.000 0.86*1.3*0.755
SGCD-0049-00 Collimator 1550 1.184 0.570 0.818 0.000 0.000 0.000 0.240 0.000 1.3*1.3*0.65
SGCD-0039-00 Collimator 1550 0.699 0.812 0.260 0.000 0.000 0.000 0.581 0.000 1.0*1.0*0.78
SGCD-0037-00 Collimator 1310 0.420 0.550 0.190 0.000 0.000 0.000 0.650 0.000 0.6*1.0*0.7
SGCD-0036-00 Collimator 1310 0.358 0.100 0.000 0.000 0.000 0.000 0.140 0.000 1.0*1.0*0.69
SGCD-0034-00 Collimator 1550 1.410 0.400 0.995 0.000 0.000 0.000 0.140 0.000 0.8*1.0*0.8
SGCD-0025-00 Collimator 1550 0.500 0.500 0.160 0.000 0.000 0.000 0.500 0.000 1.0*0.7*0.605
SGCD-0023-00 Collimator 1310 0.469 0.400 0.397 0.000 0.000 0.000 0.426 0.000 0.62*1.5*0.6
SGCD-0021-00 Collimator 1300 0.592 0.320 0.400 0.000 0.000 0.000 0.000 0.000 0.4*1.2*0.62
SGCD-0003-00 Collimator 1550 2.060 0.700 1.500 0.000 0.000 0.000 0.170 0.000 1.0*1.0*1.0
SGCD-0004-00 Collimator 1550 0.666 0.800 0.200 0.000 0.000 0.000 0.600 0.000 1.0*1.0*0.83
SGFD-0007-00 Coupling 1310 0.438 0.000 0.250 2.280 3.250 5.000 0.500 0.100 0.6*1.0*0.72
SGCD-0029-00 Collimator 1310 0.361 0.400 0.200 0.000 0.000 0.000 0.500 0.000 0.6*1.0*0.65
SGCD-0027-00 Collimator 1550 0.700 0.840 0.300 0.000 0.000 0.000 0.600 0.000 1.0*1.0*0.84
SGCD-0020-00 Collimator 1300 0.271 0.320 0.100 0.000 0.000 0.000 0.540 0.000 0.4*1.2*0.45
SGCD-0019-00 Collimator 1550 1.000 1.200 0.450 0.000 0.000 0.000 0.600 0.000 2.0*2.0*1.115
SGCD-0017-00 Collimator 1550 2.000 0.680 1.590 0.000 0.000 0.000 0.170 0.000 1.0*1.0*0.73
SGCD-0016-00 Collimator 1550 2.370 0.570 0.000 0.000 0.000 0.000 0.150 0.000 2.3*2.3*1.063
SGCD-0009-00 Collimator 1550 0.500 0.600 0.160 0.000 0.000 0.000 0.600 0.000 1.0*1.0*0.82
SGCD-0008-00 Collimator 1550 1.000 1.000 0.380 0.000 0.000 0.000 0.500 0.000 1.5*2.47*1.25
SGCD-0007-00 Collimator 1550 0.700 0.700 0.280 0.000 0.000 0.000 0.500 0.000 1.5*2.47*0.84
SGCD-0002-00 Collimator 1550 0.862 0.780 0.300 0.000 0.000 0.000 0.450 0.000 1.0*1.0*1.0
SGFD-0017-00 Coupling 1300 0.512 0.000 0.260 1.440 2.600 2.707 0.566 0.209 1.11*0.6*0.9
SGFD-0006-00 Coupling 1530 0.743 0.000 1.800 0.870 3.470 0.776 0.087 0.112 1.0*3.0*0.8
SGFD-0003-01 Coupling 1310 1.029 0.000 2.800 1.250 5.050 2.100 0.146 0.307 0.000 0.000 1.2×1.2×1.0
SGFD-0022-00 Coupling 1550 0.473 0.000 0.500 1.000 2.150 1.563 0.422 0.270 0.90*2.14*0.65
SGFD-0021-00 Coupling 1310 0.275 0.000 0.120 0.750 1.430 1.727 0.342 0.198 1.169*0.6*0.56
SGFD-0013-00 Coupling 1310 0.000 0.000 0.368 1.532 2.700 2.300 0.480 0.208 1.2*1.0*0.76
SGCD-0046-00 Collimator 1550 0.450 0.630 0.210 0.000 0.000 0.000 0.700 0.000 0.000 0.000 1.0×1.0×0.75
SGCD-0042-00 Collimator 1550 1.534 0.560 1.175 0.000 0.000 0.000 0.140 0.000 0.000 0.000 1.3×1.3×0.65
SGCD-0041-00 Collimator 1550 0.500 0.660 0.170 0.000 0.000 0.000 0.660 0.000 0.000 0.000 1.3×1.3×0.742
SGFD-0008-00 Coupling 1550 0.527 0.000 0.250 2.920 3.970 5.000 0.500 0.100 1.0*1.0*0.8
SGCD-0033-00 Collimator 1550 1.710 0.500 1.317 0.000 0.000 0.000 0.146 0.000 1.00*0.70*0.70
SGCD-0030-00 Collimator 1550 1.530 0.670 1.334 0.000 0.000 0.000 0.000 0.219 1.5*1.5*0.35
SGCD-0028 Collimator 1550 0.500 0.600 0.160 0.000 0.000 0.000 0.600 0.000 0.000 0.6×1.5×0.82
SGCD-0026-00 Collimator 1310 2.000 0.480 1.655 0.000 0.000 0.000 0.120 0.000 0.6*1.0*0.67
SGCD-0024-00 Collimator 1310 0.538 0.400 0.342 0.000 0.000 0.000 0.372 0.000 0.62*1.5*0.6
SGCD-0022-00 Collimator 1550 0.722 0.870 0.360 0.000 0.000 0.000 0.600 0.000 1.2*1.2*0.65
SGCD-0014-00 Collimator 1550 5.000 1.400 4.812 0.000 0.000 0.000 0.140 0.000 1.5*1.997*0.335
SGCD-0013-00 Collimator 1550 1.450 0.870 1.150 0.000 0.000 0.000 0.300 0.000 1.375*1.250*0.535
SGCD-0012-00 Collimator 1310 0.342 0.290 0.220 0.000 0.000 0.000 0.330 0.000 0.6*1.0*0.6
SGCD-0011-00 Collimator 1310 0.521 0.340 0.377 0.000 0.000 0.000 0.330 0.000 0.6*0.97*0.6
SGCD-0010-00 Collimator 1310 0.400 0.340 0.180 0.000 0.000 0.000 0.430 0.000 0.6*0.98*0.6
SGCD-0006-00 Collimator 1550 2.500 1.000 2.300 0.000 0.000 0.000 0.000 0.200 2.0*2.0*0.95
SGCD-0005-00 Collimator 1550 2.857 1.180 2.380 0.000 0.000 0.000 0.206 0.000 1.6*1.6*0.85
SGCD-0001-00 Collimator 1550 0.500 0.500 0.160 0.000 0.000 0.000 0.500 0.000 1.0*0.7*0.7

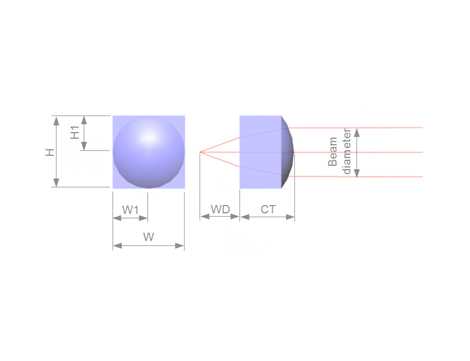

Collimator type

Lens configuration Aspheric glass lens
Material Optical glass (RoHS compliant)
Lens size 0.6 ㎜ over
Antireflection film Dual-side multi-layer coating
Operating temperature -40℃ to 85℃
Storage temperature -40℃ to 100℃
Temperature and humidity resistance +85℃ at 85%RH
Storage temperature -40℃ to 100℃
Tolerance H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛

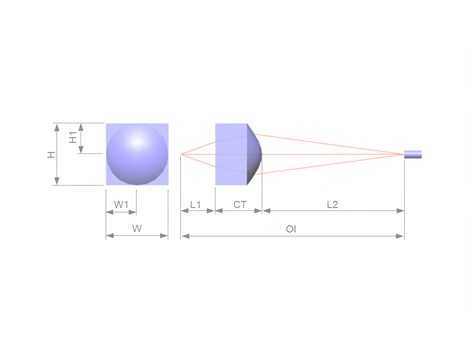

Coupling type

Lens configuration Aspheric glass lens
Material Optical glass (RoHS compliant)
Lens size 0.6 ㎜ over
Antireflection film Dual-side multi-layer coating
Operating temperature -40℃ to 85℃
Storage temperature -40℃ to 100℃
Temperature and humidity resistance +85℃ at 85%RH
Storage temperature -40℃ to 100℃
Tolerance H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛
