Optical parts & Components
MPNICS manufacture new design products through our unique technology development with standardized processes
and supply the best quality products that meet international standards at the lowest cost.

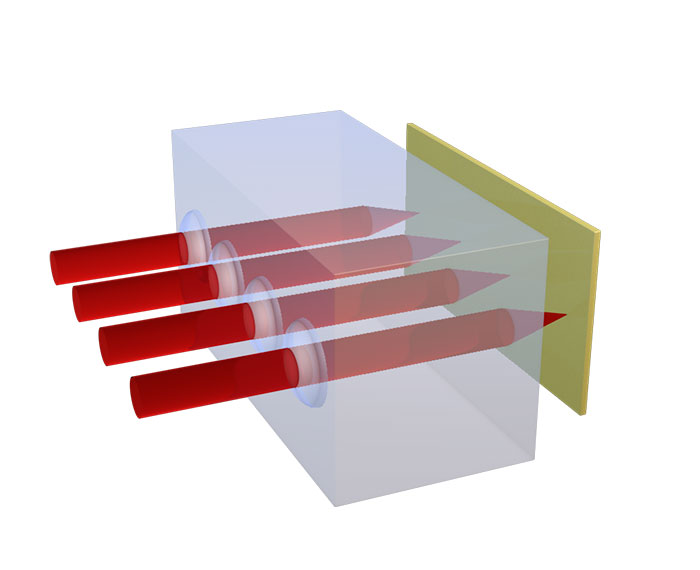

Micro Lens Array
Micro lens array is manufactured through hybrid molding method
which is originally developed by MPNICS through optimized manufacturing technology.
– DWDM (MUX, DeMUX, Optical add/drop)
– Optical Switches, Amplifiers, and Isolators
– Variable Optical Attenuators
– Waveguide to Fiber Coupling
– Lens profiles : Plano-convex, aspherics
Product Specification

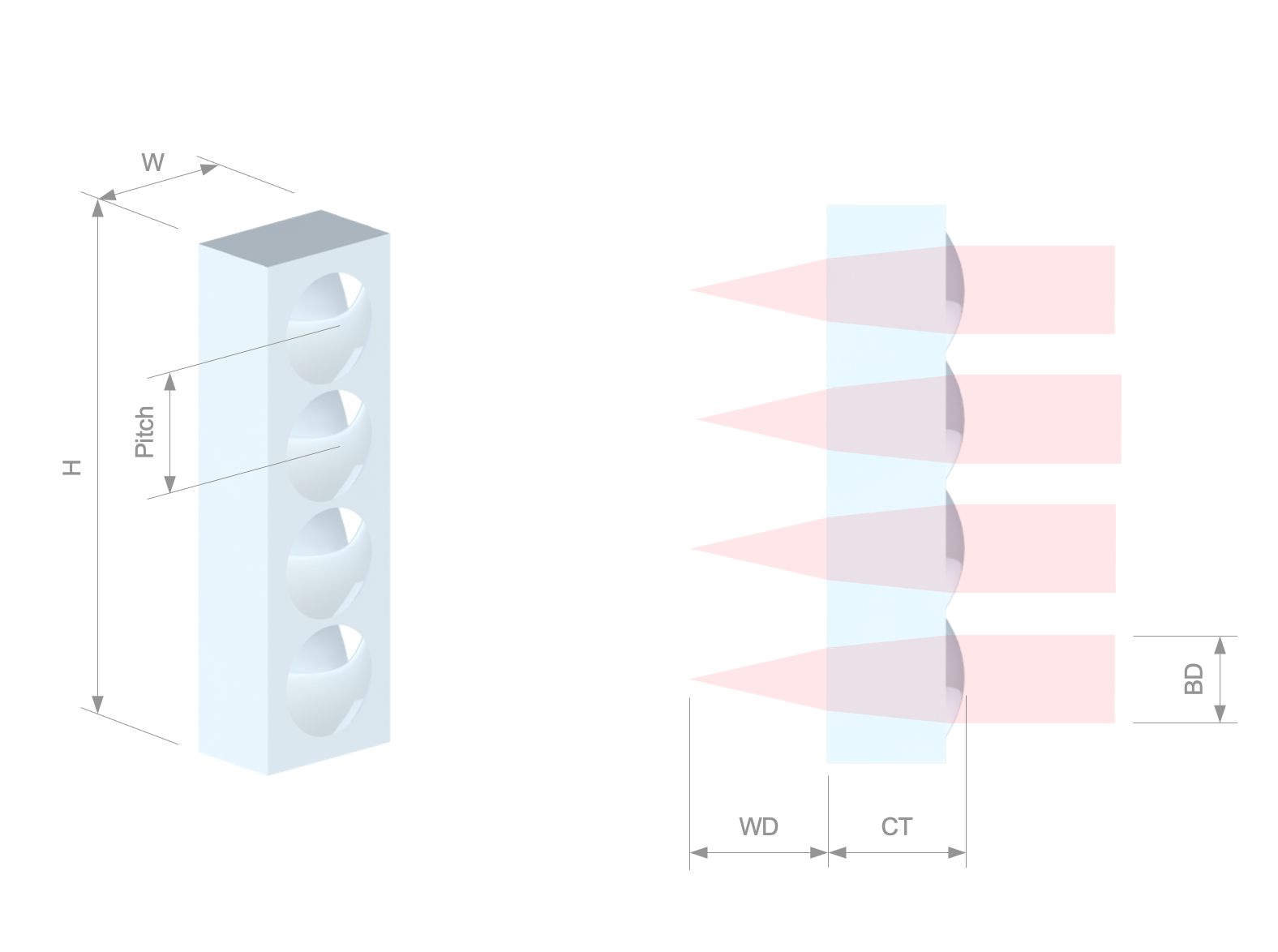

Collimator type
| Lens configuration | Glass Molded Micro Lens Array |
| Material | Optical glass (RoHS compliant) |
| Lens size | 1.0 ㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | 23±5℃ |
| Storage humidity | 45±5% |

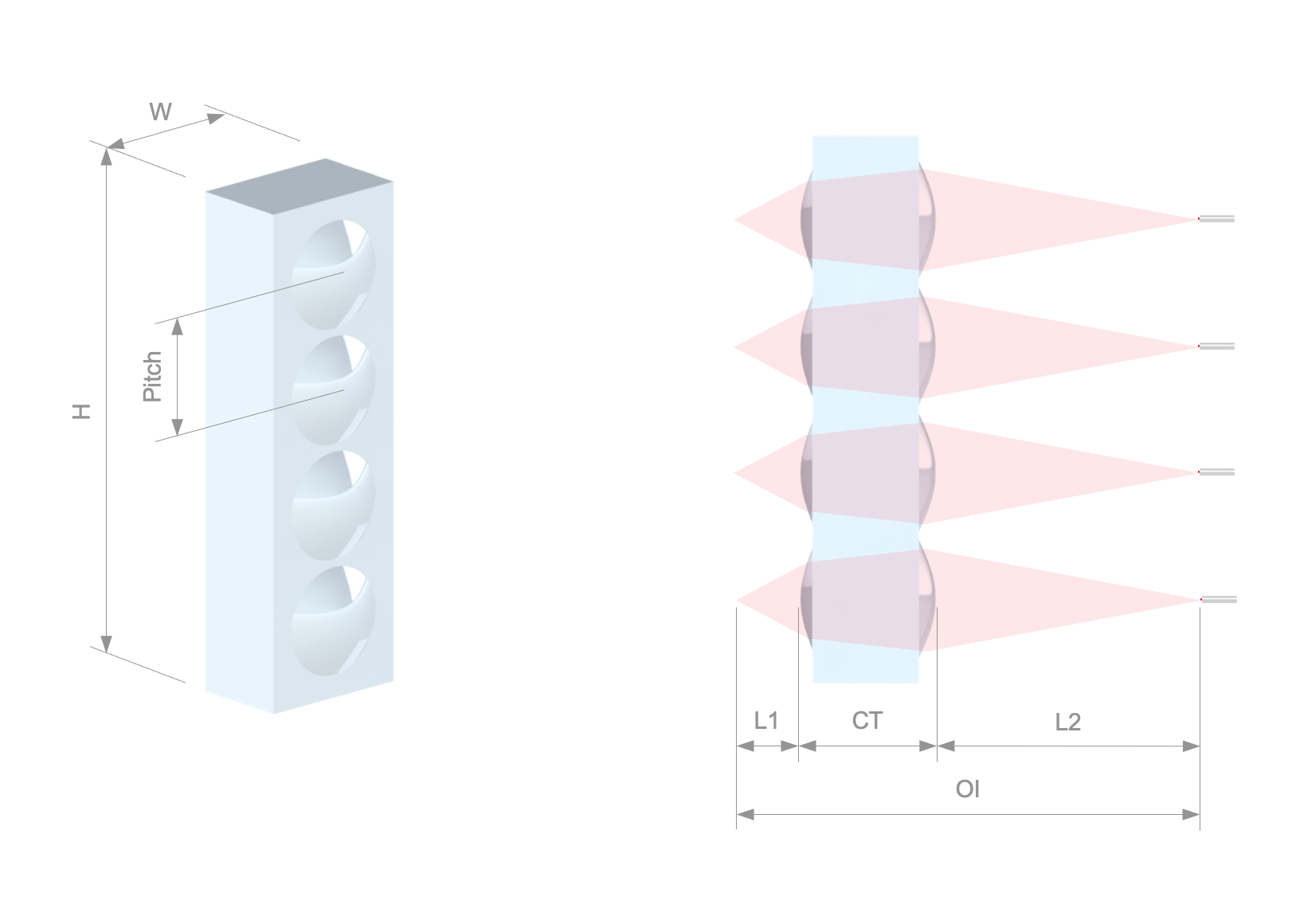

Coupling type
| Lens configuration | Glass Molded Micro Lens Array |
| Material | Optical glass (RoHS compliant) |
| Lens size | 1.0 ㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | 23±5℃ |
| Storage humidity | 45±5% |
for detailed list of the standard products, Please visit MPNICS Store.
