Optical parts & Components
MPNICS manufacture new design products through our unique technology development with standardized processes
and supply the best quality products that meet international standards at the lowest cost.
Silicon Micro Square Lens
MPNICS manufacture a Silicon micro square lenses applied our unique etching technology method.

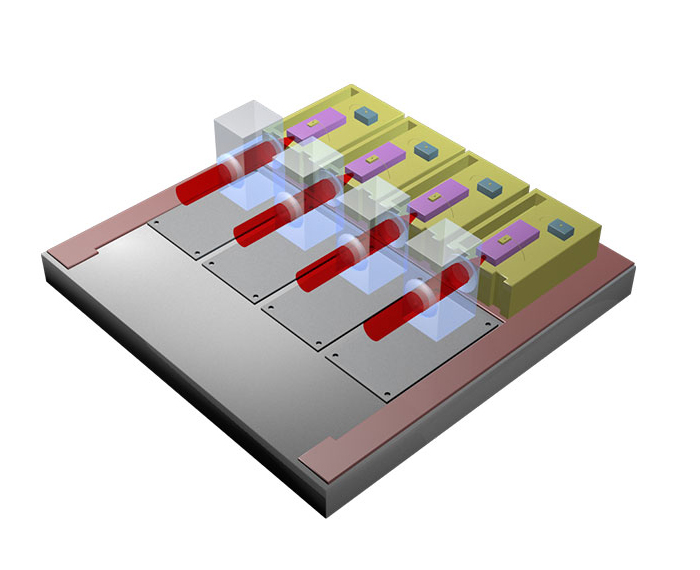

– DWDM (MUX, DeMUX, Optical add/drop)
– Optical Switches, Amplifiers, and Isolators
– Variable Optical Attenuators
– Waveguide to Fiber Coupling
– Lens profiles : Plano-convex, aspherics
Product Specification

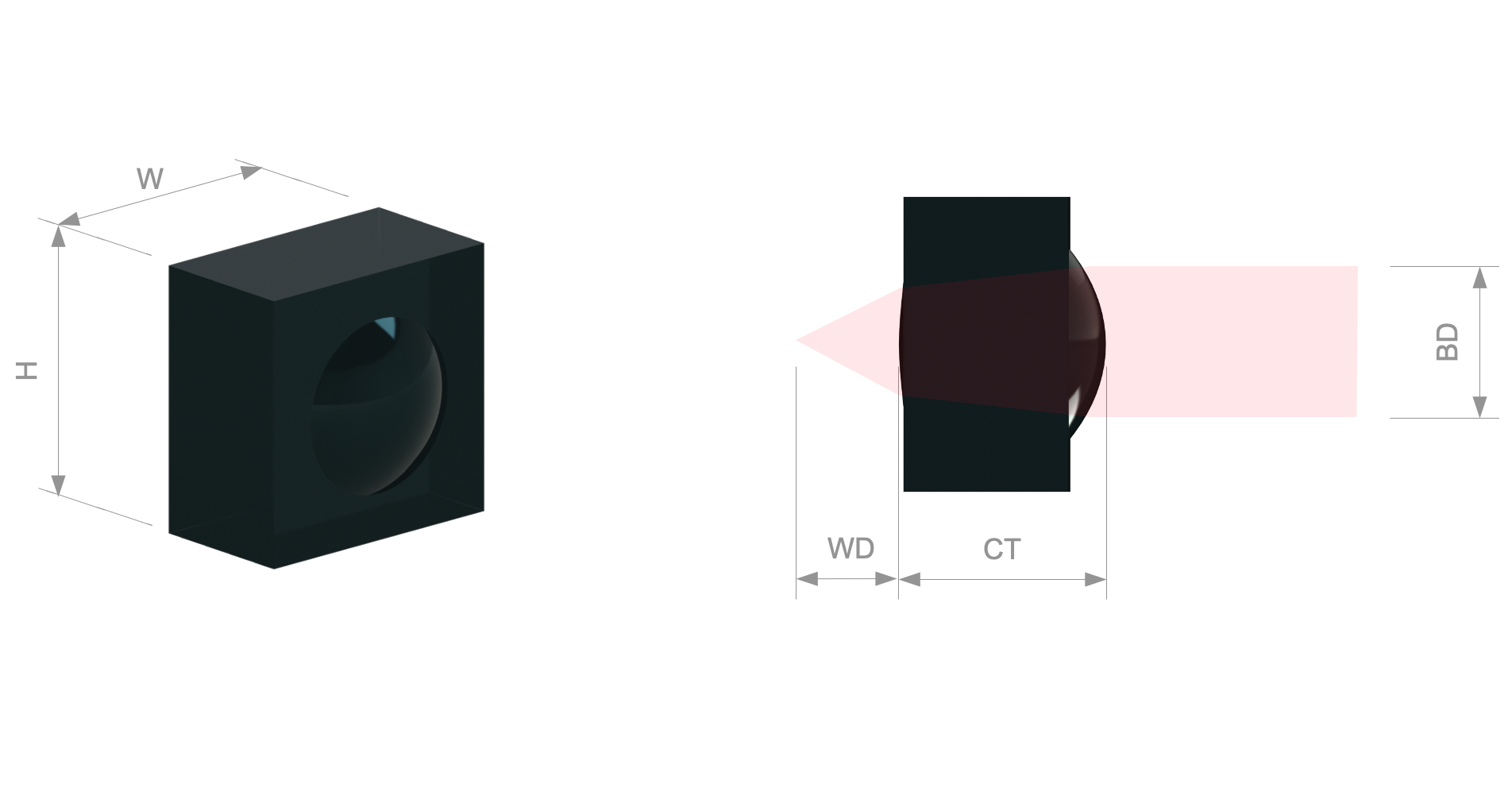

Collimator type
| Lens configuration | Si Square Lens |
| Material | Optical glass (RoHS compliant) |
| Lens size | 0.6 ㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Storage temperature | -40℃ to 100℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | -40℃ to 100℃ |

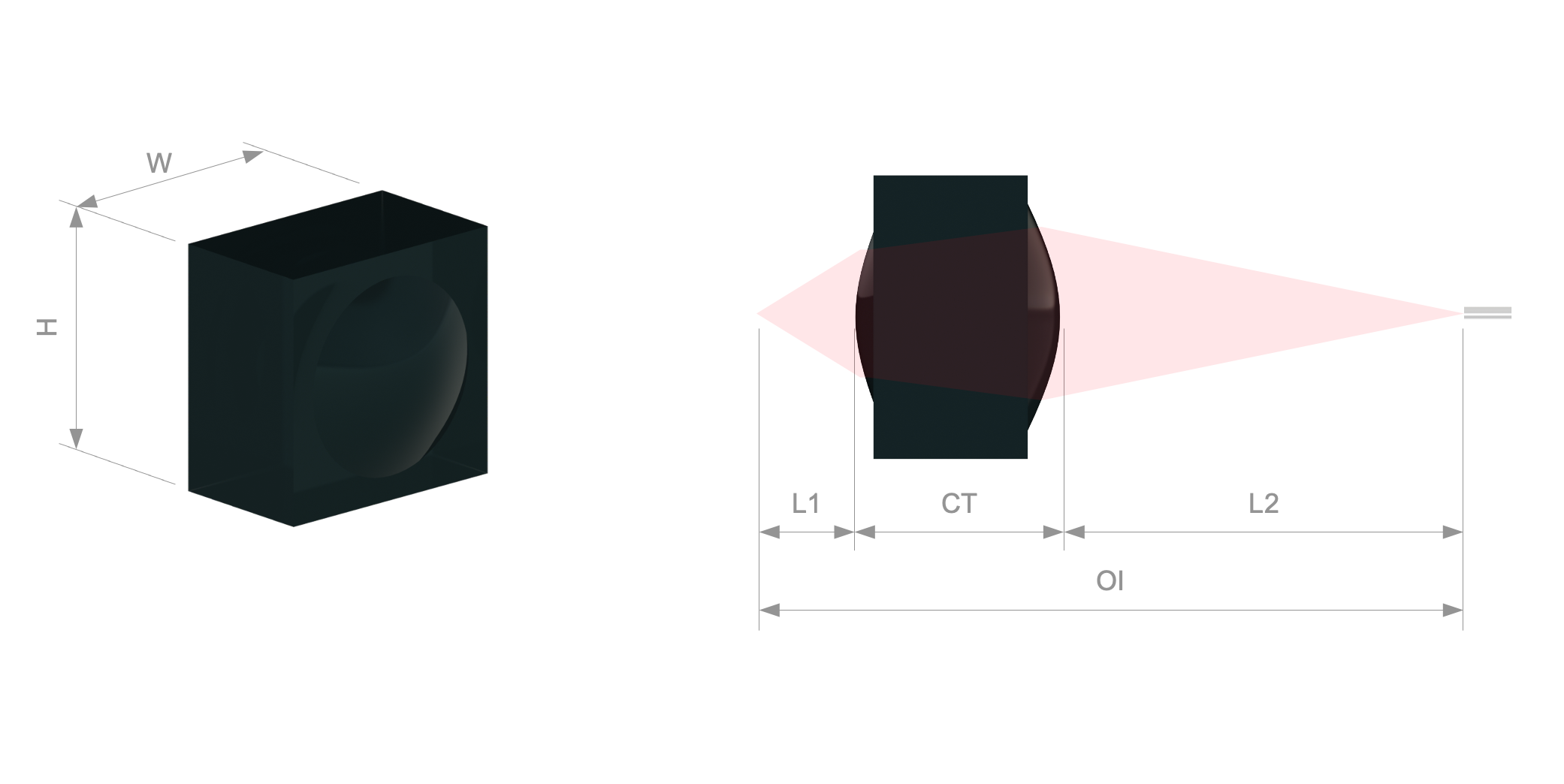

Coupling type
| Lens configuration | Si Square Lens |
| Material | Optical glass (RoHS compliant) |
| Lens size | 0.6 ㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Storage temperature | -40℃ to 100℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | -40℃ to 100℃ |
for detailed list of the standard products, Please visit MPNICS Store.
