Silicon Micro Square Lens

Silicon Micro Square Lens

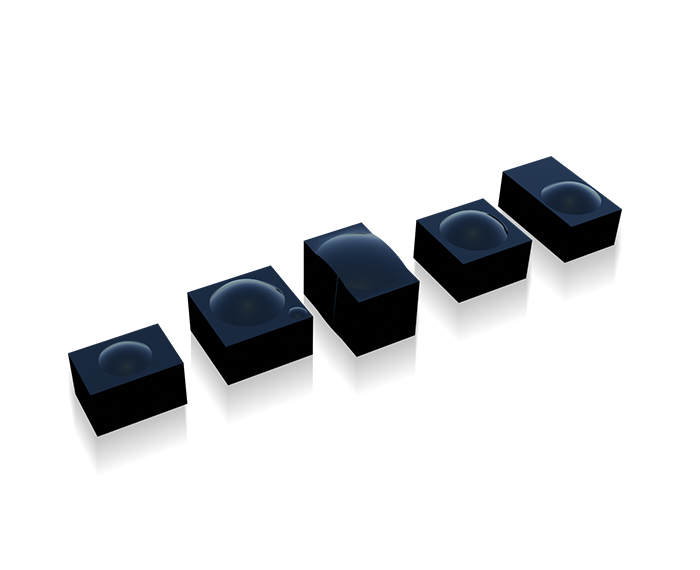

Silicon Micro Square Lens is manufactured through hybrid molding method which is originally developed by MPNICS through optimized manufacturing technology.

  • DWDM (MUX, DeMUX, Optical add/drop)
  • Optical Switches, Amplifiers, and Isolators
  • Variable Optical Attenuators

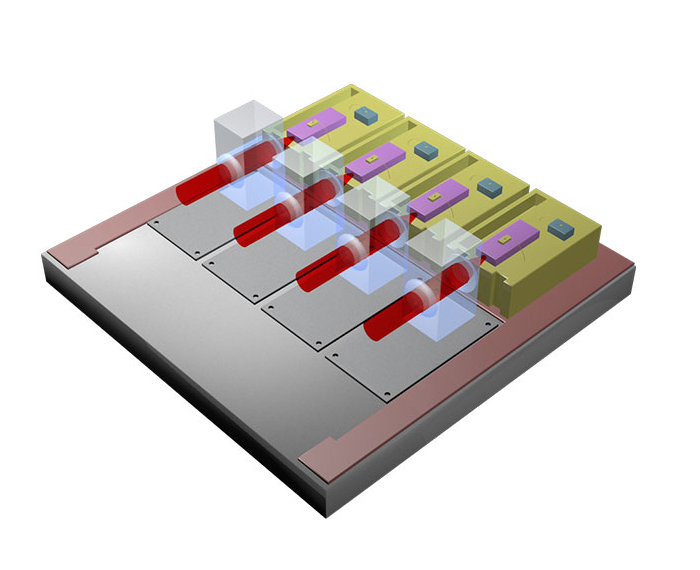

  • Waveguide to Fiber Coupling
  • Lens profiles : Plano-convex, aspherics

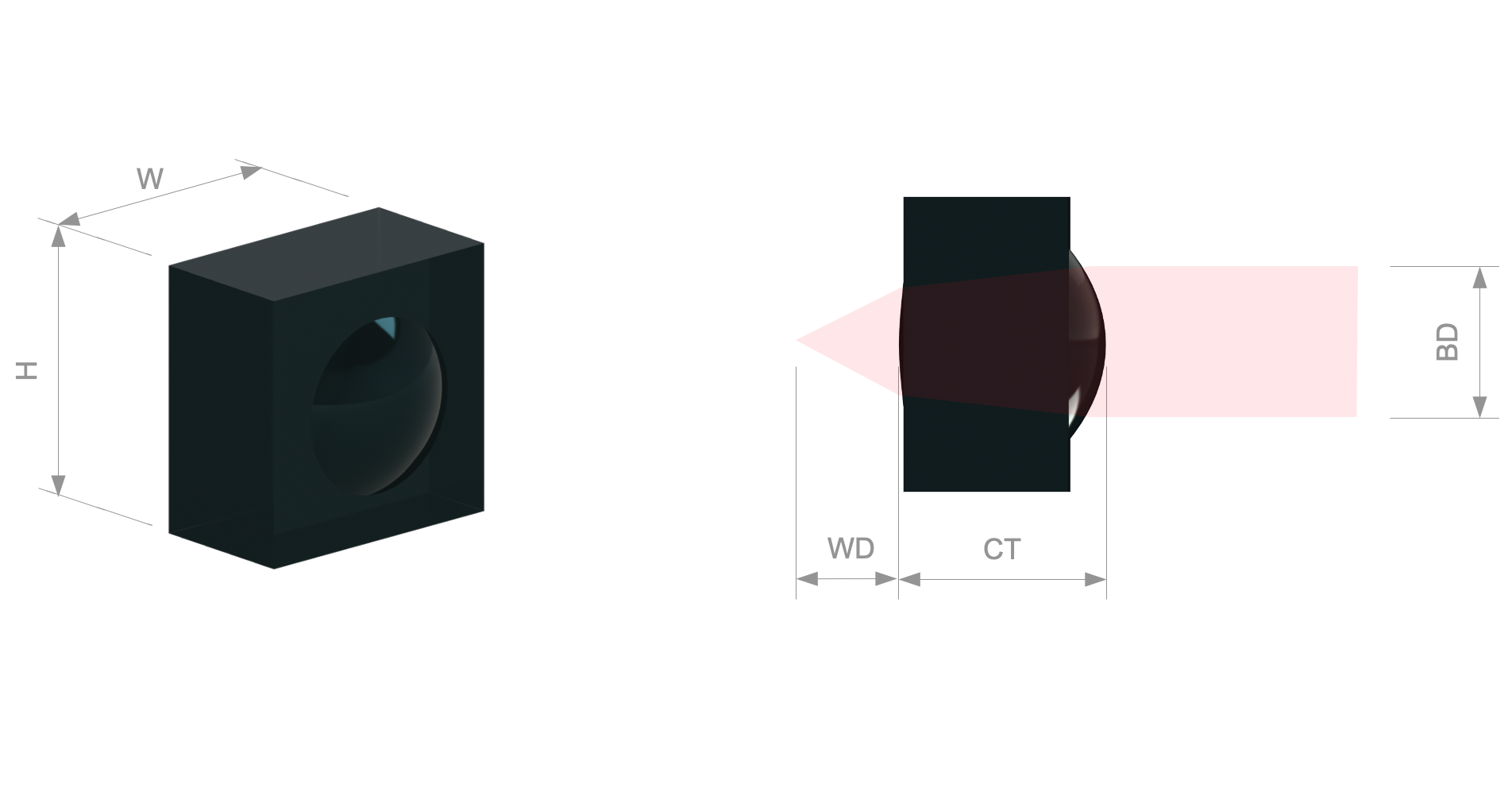

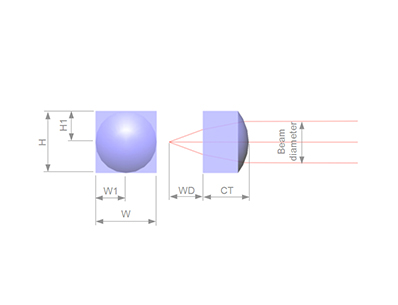

Collimator type

Lens configuration Aspheric Silicon lens
Material Silicon (RoHS compliant)
Lens size 0.6 ㎜ over
Antireflection film Dual-side multi-layer coating
Operating temperature -40℃ to 85℃
Storage temperature -40℃ to 100℃
Temperature and humidity resistance +85℃ at 85%RH
Storage temperature -40℃ to 100℃
Tolerance H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛

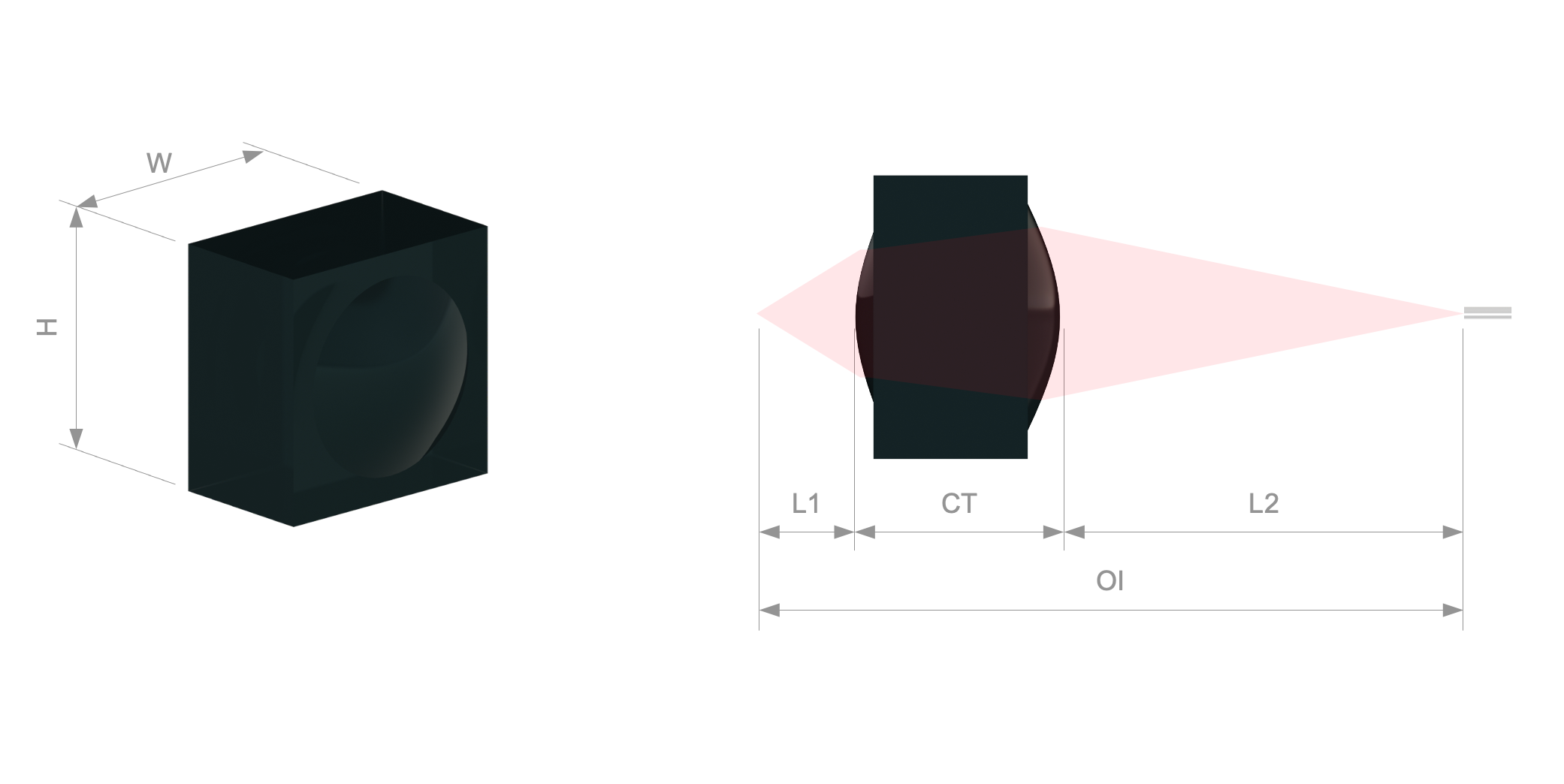

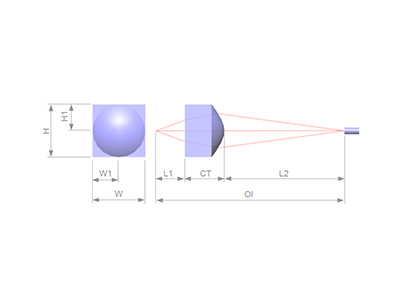

Coupling type

Lens configuration Aspheric Silicon lens
Material Silicon (RoHS compliant)
Lens size 0.6 ㎜ over
Antireflection film Dual-side multi-layer coating
Operating temperature -40℃ to 85℃
Storage temperature -40℃ to 100℃
Temperature and humidity resistance +85℃ at 85%RH
Storage temperature -40℃ to 100℃
Tolerance H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛
