Optical parts & Components
MPNICS manufacture new design products through our unique technology development with standardized processes
and supply the best quality products that meet international standards at the lowest cost.

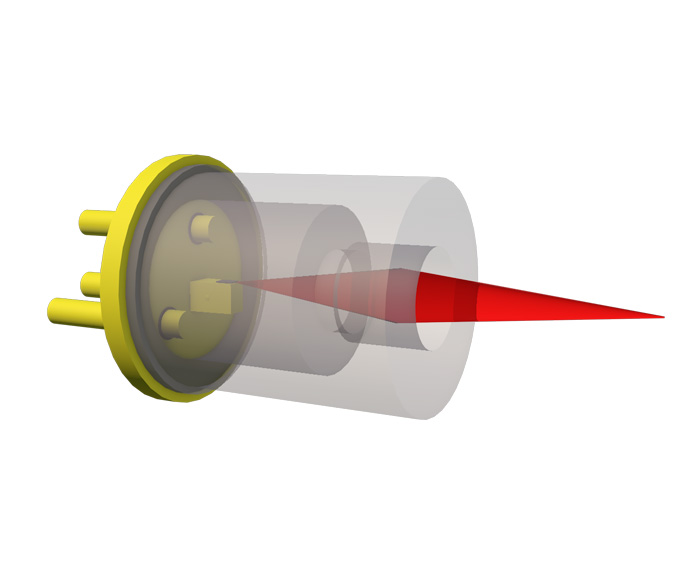

CAN Lens
Using MPNICS’s unique micro molding method, we offer new customized design in shortest lead-time at lowest cost.
– Material : Optical glass (RoHS compliant)
– Optimal performance using Aspheric shape
– Low cost and high productivity, Good reliability
– Low lenses surface roughness and Low aspheric form error
– Lens profiles : Bi-convex, aspherics
– High Transmission with Low Insertion Loss
Product Specification

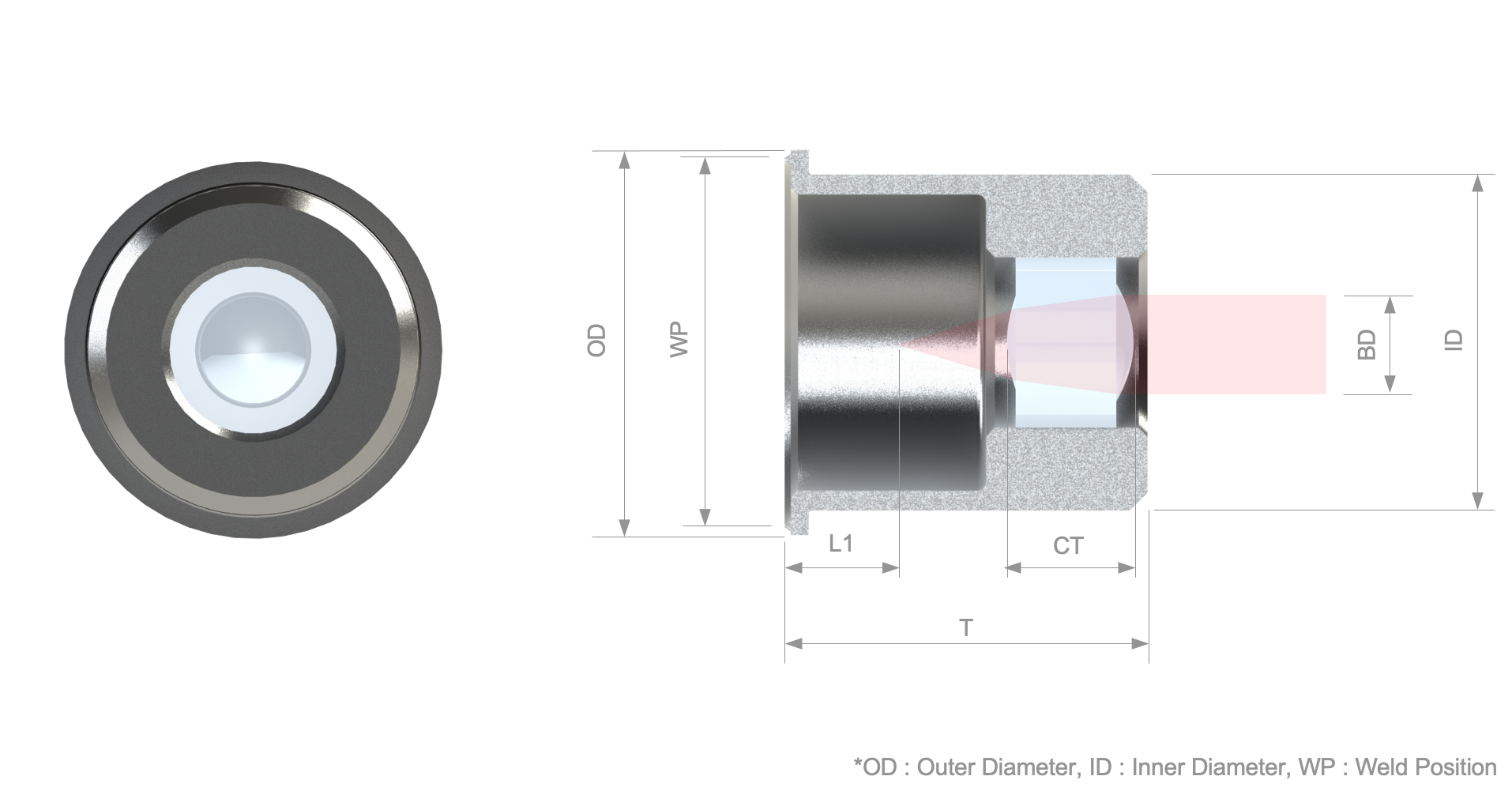

Collimator type
| Lens configuration | Glass Molded CAN Lens |
| Material | Optical glass (RoHS compliant) |
| Lens size | TO-56, TO-46, TO-38, etc |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | 23±5℃ |
| Storage humidity | 45±5% |

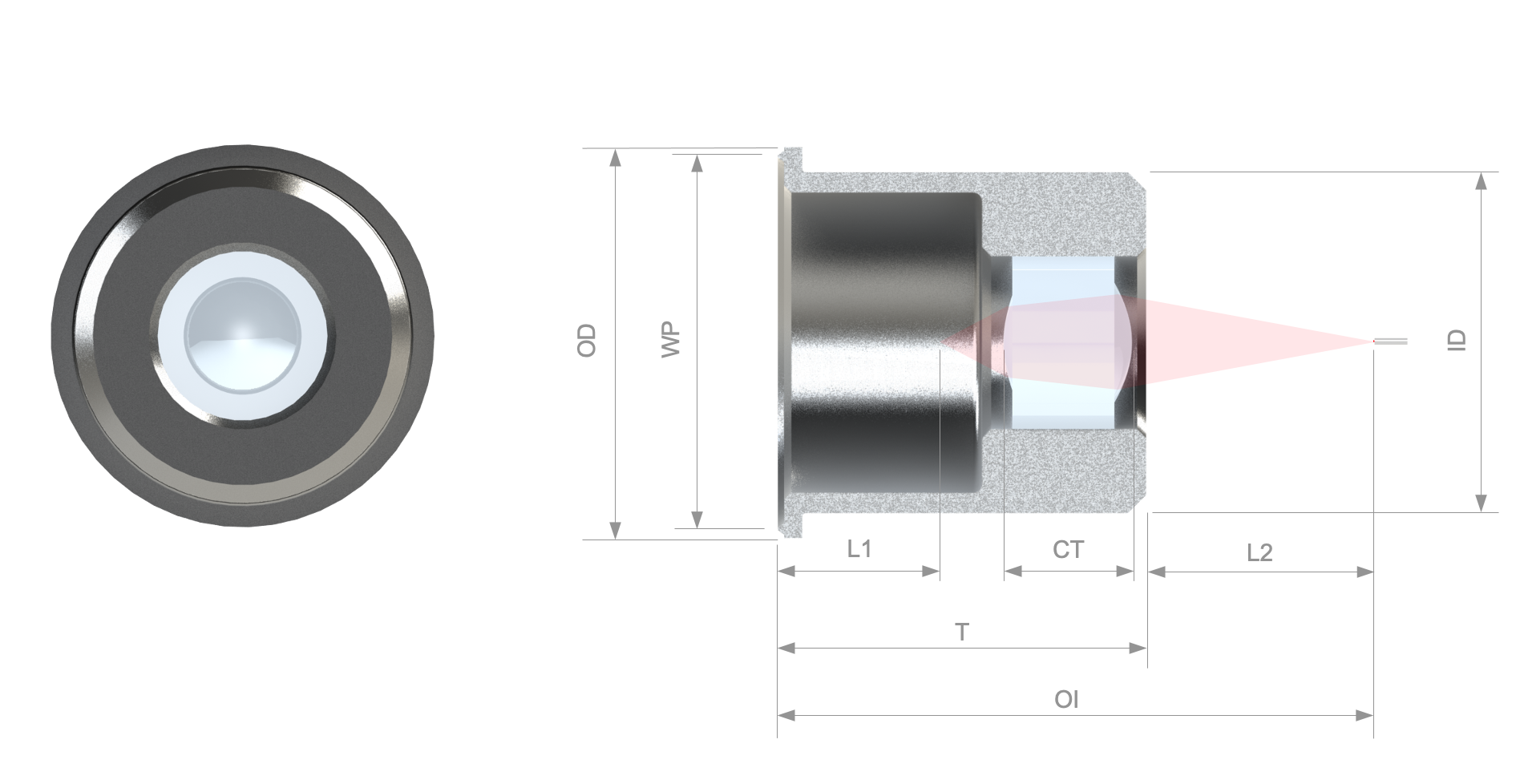

Coupling type
| Lens configuration | Glass Molded CAN Lens |
| Material | Optical glass (RoHS compliant) |
| Lens size | TO-56, TO-46, TO-38, etc |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | 23±5℃ |
| Storage humidity | 45±5% |
for detailed list of the standard products, Please visit MPNICS Store.
