Can Lens

Can Lens

Using MPNICS’s unique micro molding method, we offer new customized design in shortest lead-time at lowest cost.

  • Material : Optical glass (RoHS compliant)
  • Optimal performance using Aspheric shape
  • Low cost and high productivity, Good reliability
  • Low lenses surface roughness and Low aspheric form error
  • Lens profiles : Bi-convex, aspherics
  • High Transmission with Low Insertion Loss
Product Inquiry
Product Video

WL=Wave Length, EFL=Effective Focal Length, L1=WD, OI=Distance of the Object and Image, M=Magnification, NAO=Numerical Aperture Object, NA=Numerical Aperture

Part number
Type
WL
(λnm)
EFL
(mm)
BD
(mm)
L1
(mm)
L2
(mm)
OI
(mm)
M
NAO
NA
Size
W×H×CT (mm)
CVFD-0001-00 Coupling 1310 1.300 0.000 1.100 4.910 8.690 3.200 0.400 0.125 Ø4.3*T3.97
CVFO-0006-00 Coupling 1310 0.940 0.000 1.000 3.930 7.500 2.900 0.500 0.170 Ø4.3*T3.7
CVFO-0005-00 Coupling 1310 0.916 0.000 0.650 4.750 7.500 4.500 0.450 0.100 Ø3.1*T3.05
CVFO-0004-00 Coupling 1310 1.127 0.000 1.000 3.930 7.500 2.800 0.400 0.114 Ø4.3*T3.7
CVCD-0001-00 Collimator 1310 0.500 0.600 0.160 0.000 0.000 0.000 0.600 0.000 Ø3.1*T2.39
CVFO-0002-00 Coupling 1310 0.873 0.000 0.550 5.850 7.500 4.500 0.450 0.100 Ø4.3*T3.7
CVFO-0007-00 Coupling 1310 1.336 0.000 1.100 6.430 10.100 4.000 0.400 0.100 Ø4.3*T3.97
CVFO-0008-00 Coupling 1310 1.127 0.000 0.250 1.550 3.500 3.100 0.500 0.160 Ø3.6*T2.0
CVFO-0009-00 Coupling 1310 0.911 0.000 2.700 0.775 5.815 2.000 0.400 0.200 Ø5.4*T2.794

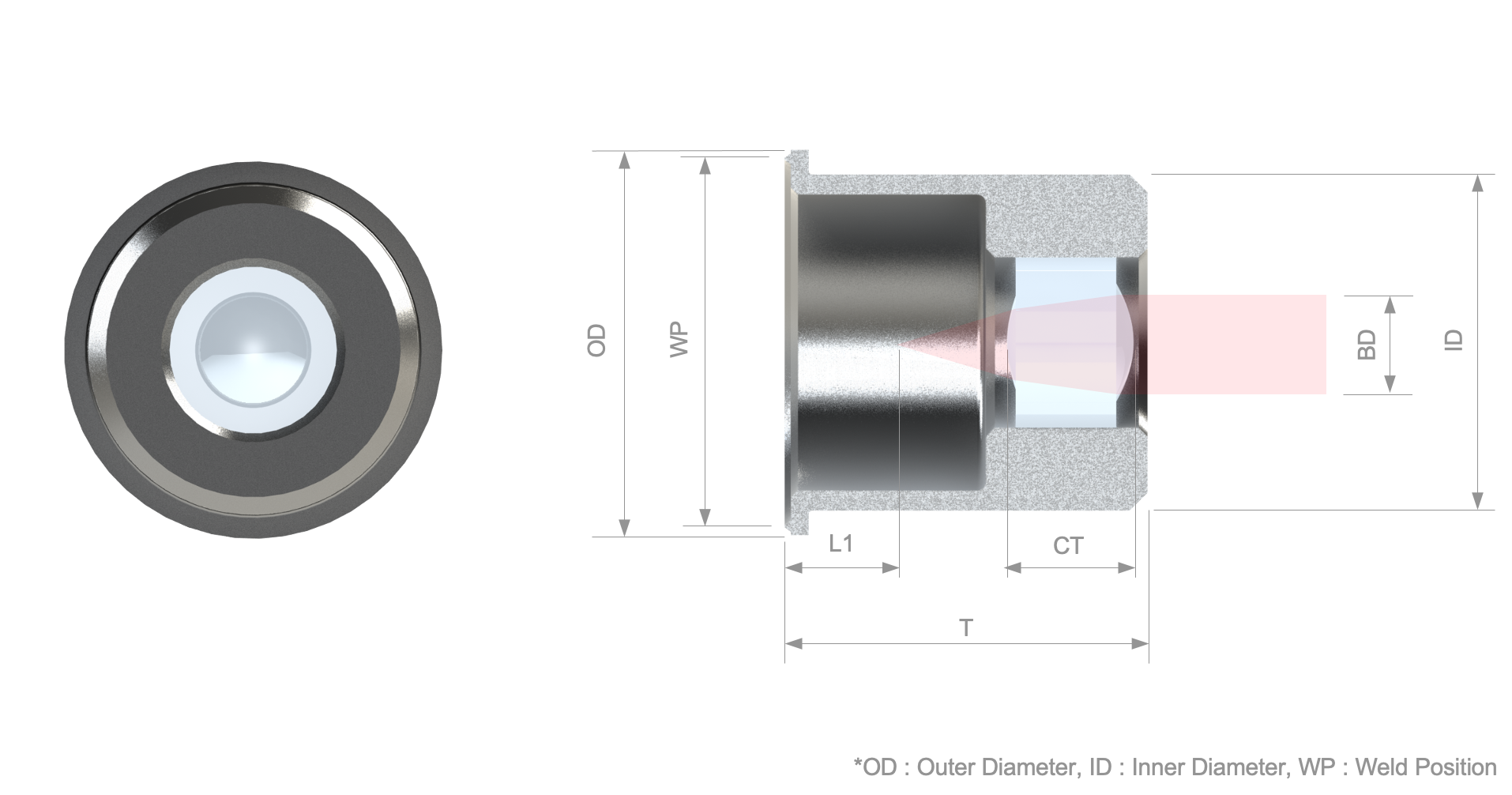

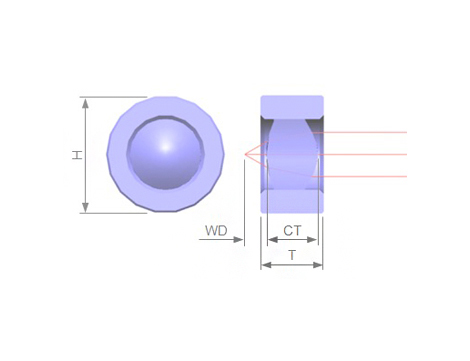

Collimator type

Lens configuration Aspheric glass lens
Material Optical glass (RoHS compliant)
Lens size 0.6 ㎜ over
Antireflection film Dual-side multi-layer coating
Operating temperature -40℃ to 85℃
Storage temperature -40℃ to 100℃
Temperature and humidity resistance +85℃ at 85%RH
Storage temperature -40℃ to 100℃
Tolerance H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛

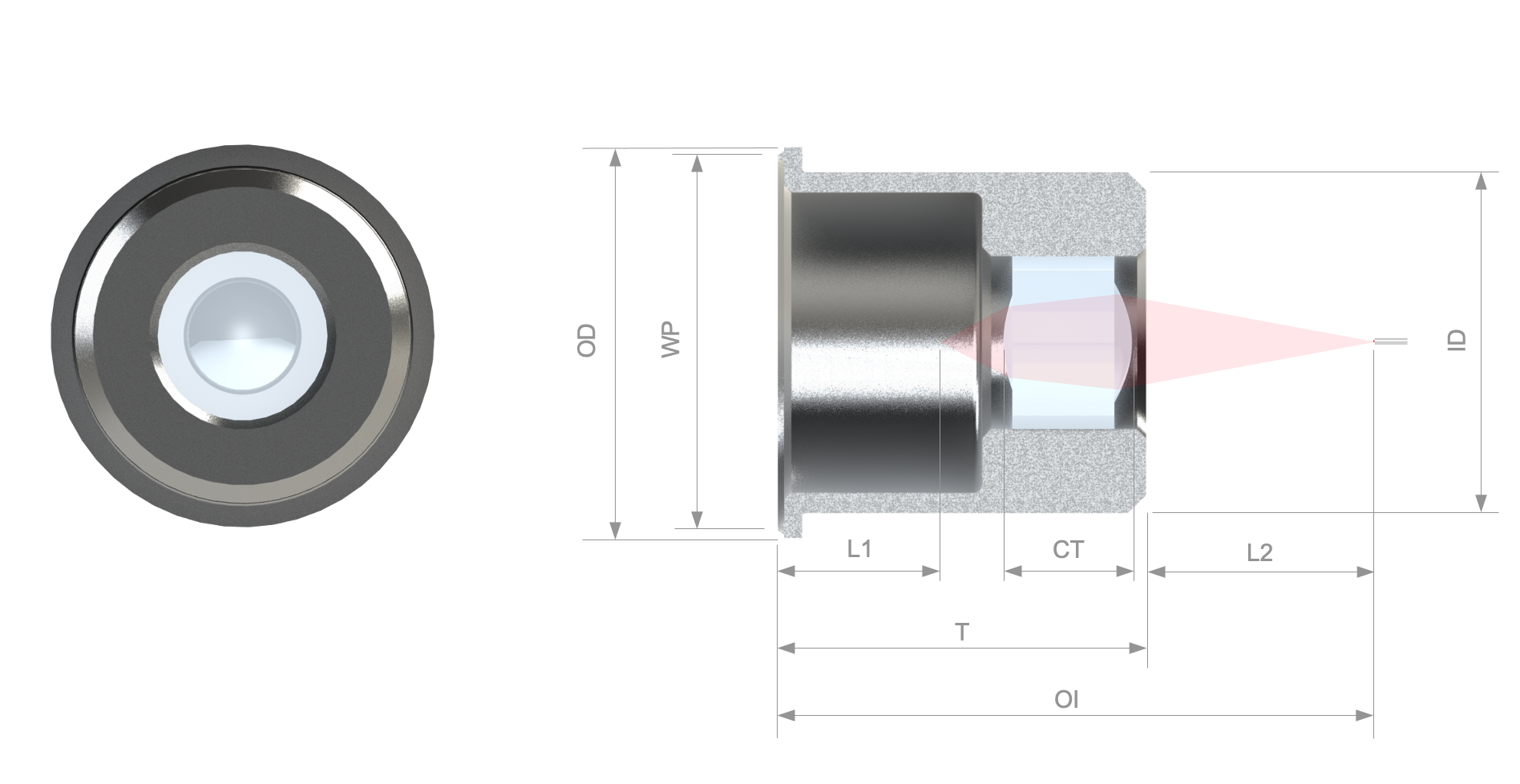

Coupling type

Lens configuration Aspheric glass lens
Material Optical glass (RoHS compliant)
Lens size 0.6 ㎜ over
Antireflection film Dual-side multi-layer coating
Operating temperature -40℃ to 85℃
Storage temperature -40℃ to 100℃
Temperature and humidity resistance +85℃ at 85%RH
Storage temperature -40℃ to 100℃
Tolerance H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛
