Micro Round Lens

Micro Round Lens

Using MPNICS’s unique micro molding method, we offer new customized design in shortest lead-time at lowest cost.

  • Material : Optical glass (RoHS compliant)
  • Optimal performance using Aspheric shape
  • Low cost and high productivity, Good reliability
  • Low lenses surface roughness and Low aspheric form error
  • Lens profiles : Bi-convex, aspherics
  • High Transmission with Low Insertion Loss

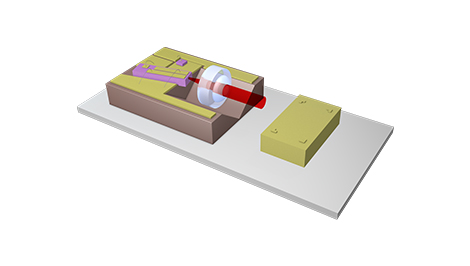

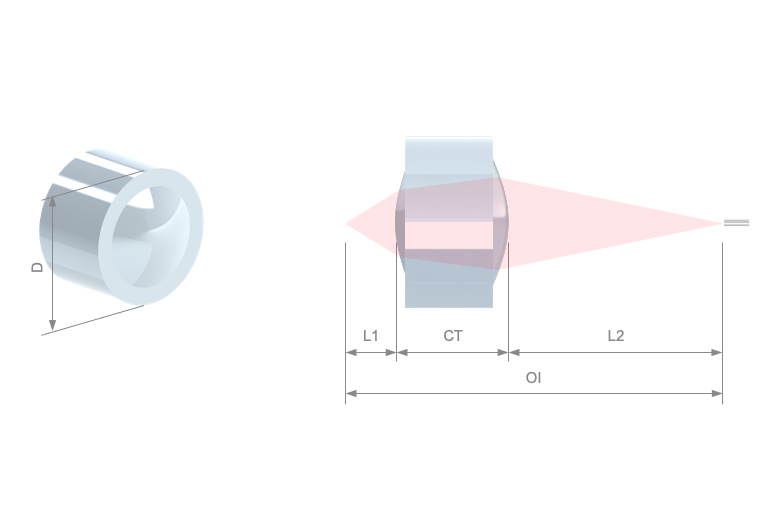

WL=Wave Length, EFL=Effective Focal Length, L1=WD, OI=Distance of the Object and Image, M=Magnification, NAO=Numerical Aperture Object, NA=Numerical Aperture

Part number
Type
WL
(λnm)
EFL
(mm)
BD
(mm)
L1
(mm)
L2
(mm)
OI
(mm)
M
NAO
NA
Size
W×H×CT (mm)
BVFO-0001-00 Coupling 1310 0.950   1.337 2.410 4.747 1.700 0.150 0.090 Ø1.7*1.0
BVCD-0024-00 Collimator 920 2.000 2.000 1.050       0.500 Ø3.0*1.7
BVCD-0013-00 Collimator 905 5.190       Ø7.5*1.72
BVCD-0025-00 Collimator 960 5.300 2.000 4.350       0.189 Ø3.00*1.70
BVCD-0012-00 Collimator 1550 1.038 0.300 0.640       0.140 Ø1.249*0.76
BVCD-0032-00 Collimator 1550 1.153 0.430 1.150       0.140 Ø1.249*0.68
BVCD-0002-00 Collimator 1550 0.550 0.480 0.290       0.470   Ø1.0*0.59
BVFD-0001-01 Coupling 1550 0.528   0.250 2.950 4.000 5.000 0.500 0.100 Ø1.00*T0.8
BVCD-0007-00 Collimator 1310 1.090 0.310 0.700       0.140   Ø1.249*0.75
BVCD-0008-00 Collimator 533 3.130 2.500 2.345       0.400 Ø3.4*1.5
BVCD-0014-00 Collimator 1310 1.068 0.300 0.680       0.140   Ø1.249*0.75
BVCD-0004-00 Collimator 1310 0.890 0.250 0.500       0.140   Ø1.249*0.75
BVCD-0019-00 Collimator 1550 1.154 0.700 0.770       0.000 0.300 Ø1.249*0.65
BVCD-0020-00 Collimator 1064 18.846 28.000 15.355       Ø29.9*13.64
BVCD-0022-00 Collimator 1300 1.790 1.200 1.122       0.340 Ø1.5*1.0

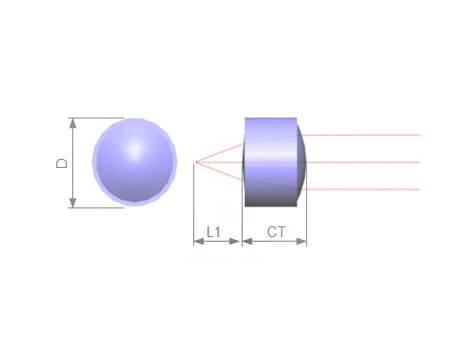

Collimator type

Lens configuration Aspheric glass lens
Material Optical glass (RoHS compliant)
Lens size 0.6 ㎜ over
Antireflection film Dual-side multi-layer coating
Operating temperature -40℃ to 85℃
Storage temperature -40℃ to 100℃
Temperature and humidity resistance +85℃ at 85%RH
Storage temperature -40℃ to 100℃
Tolerance H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛

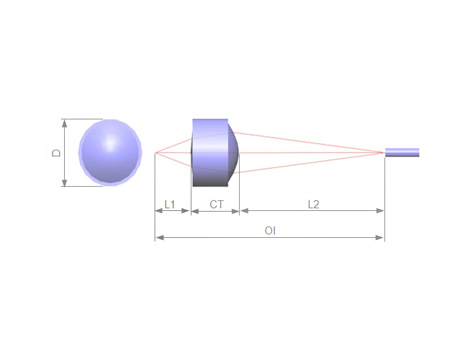

Coupling type

Lens configuration Aspheric glass lens
Material Optical glass (RoHS compliant)
Lens size 0.6 ㎜ over
Antireflection film Dual-side multi-layer coating
Operating temperature -40℃ to 85℃
Storage temperature -40℃ to 100℃
Temperature and humidity resistance +85℃ at 85%RH
Storage temperature -40℃ to 100℃
Tolerance H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛
