Slow-Axis Collimation Arrays Lenses (SACA)
– Axisymmetric cylindrical aspherical lens is the most important key optical component in the development and production of high-power diode laser systems.
– The Slow-Axis Collimation Arrays (SACA) is a very efficient means of beam shaping in the slow-axis of diode lasers and can be used as lenses for collimating monolithic arrays of cylindrical lenses.
- Material : Optical glass (RoHS compliant)
- Optimal performance using Aspheric shape
- Laser quality Anti-reflective coated optics for maximum efficiency
- Collimates & Circularizes the Output of a Laser Diode
- AR Coated Wavelength Range: 700 – 1100 nm
- Focal Lengths from 0.05 mm to 0.15 mm

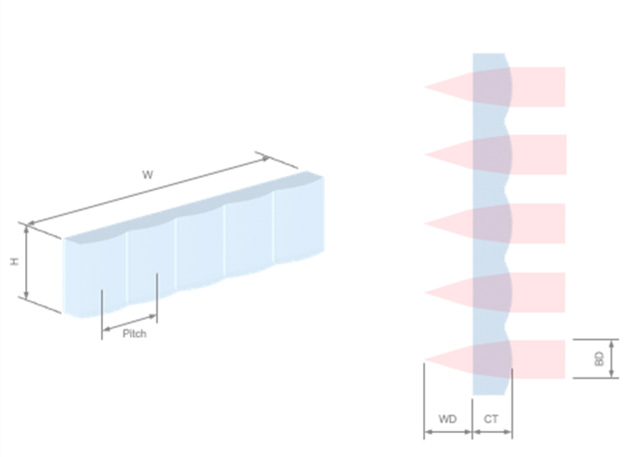

Slow-Axis Collimation Arrays Lenses (SACA)
| Configuration | Glass Molded Cylindrical Lens |
| Material | Optical glass (RoHS compliant) |
| Size | 0.5㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | 23±5℃ |
| Storage humidity | 45±5% |
