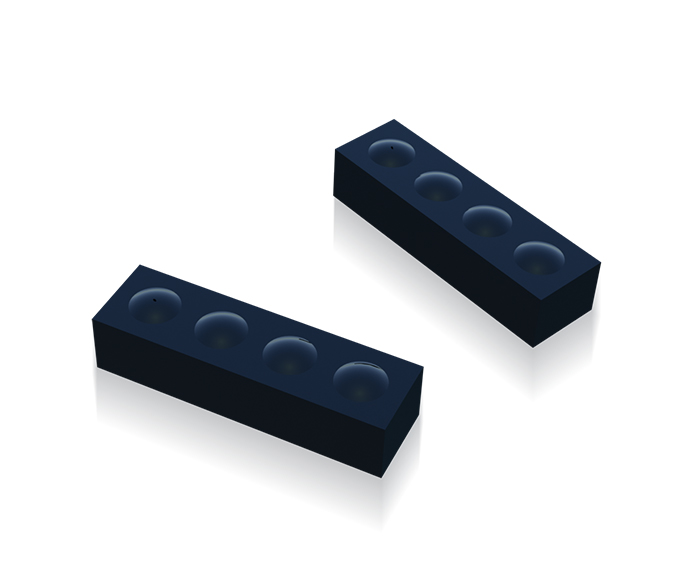

Silicon Micro Lens Array

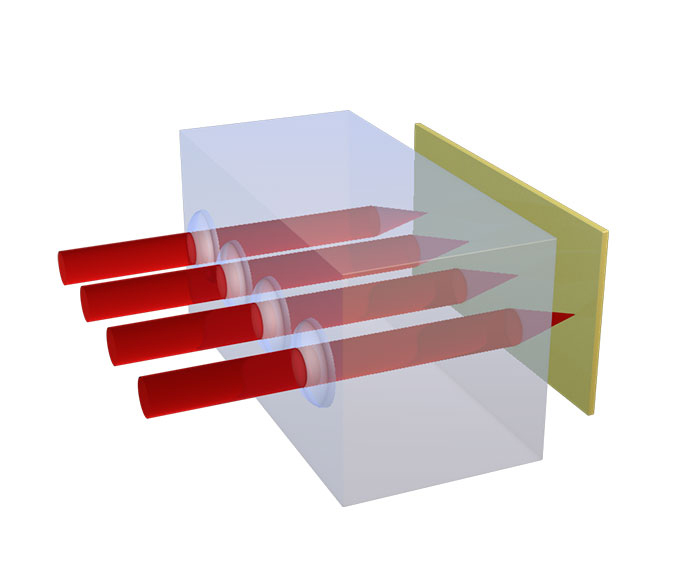

Silicon Micro Lens Array is manufactured through hybrid molding method which is originally developed by MPNICS through optimized manufacturing technology.
- DWDM (MUX, DeMUX, Optical add/drop)
- Optical Switches, Amplifiers, and Isolators
- Variable Optical Attenuators
- Waveguide to Fiber Coupling
- Lens profiles : Plano-convex, aspherics

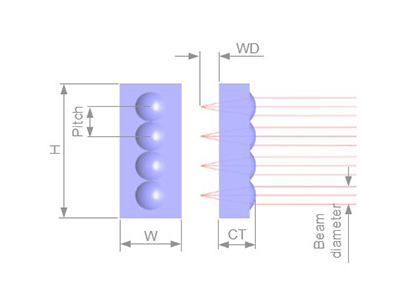

Collimator type
| Lens configuration | Si Micro Lens Array |
| Material | Optical Glass (RoHS compliant) |
| Lens size | 1.0mm over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Storage temperature | -40℃ to 100℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | -40℃ to 100℃ |

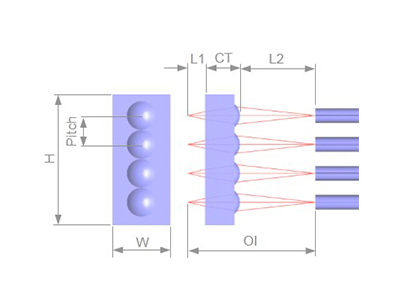

Coupling type
| Lens configuration | Si Micro Lens Array |
| Material | Optical Glass (RoHS compliant) |
| Lens size | 1.0mm over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Storage temperature | -40℃ to 100℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | -40℃ to 100℃ |
