Cylindrical Lens

Cylindrical Lens

Cylindrical lens has aspheric cylindrical forms that are asymmetric lens forms in rotation which optimizes the lens for collimation of fast-axis beams of high-power laser diodes.

  • Material : Optical glass (RoHS compliant)
  • Optimal performance using Aspheric shape
  • Laser quality Anti-reflective coated optics for maximum efficiency
  • Collimates & Circularizes the Output of a Laser Diode
  • AR Coated Wavelength Range: 700 – 1100 nm
  • Focal Lengths from 0.05 mm to 0.15 mm

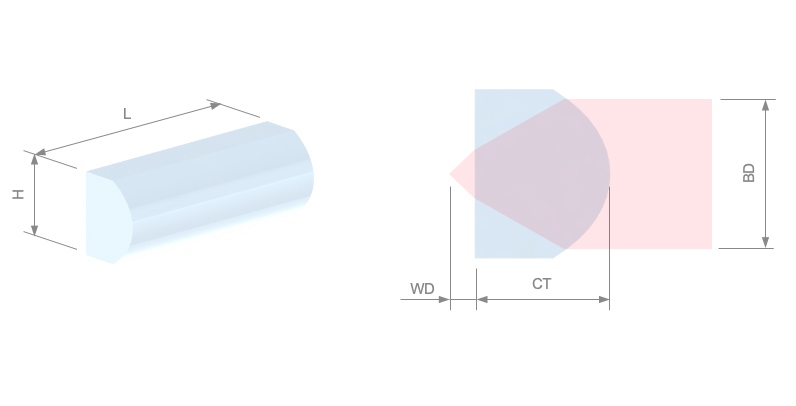

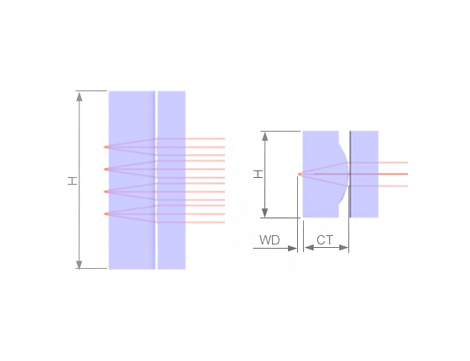

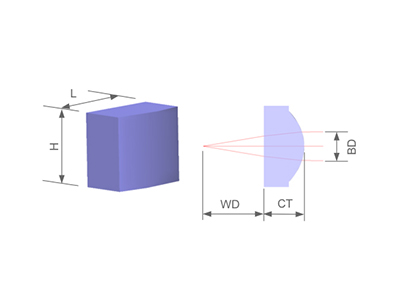

WL=Wave Length, EFL=Effective Focal Length, L1=WD, OI=Distance of the Object and Image, M=Magnification, NAO=Numerical Aperture Object, NA=Numerical Aperture

Part number
Type
WL
(λnm)
EFL
(mm)
BD
(mm)
L1
(mm)
L2
(mm)
OI
(mm)
M
NAO
NA
Size
W×H×CT (mm)
YGCO-0004-00 Colimator 905 5.601 3.000 5.000 0.000 0.260 4.4*4.0*1.0
YGCD-0013-00 Colimator 976 0.457 0.7000 0.100 0.800 4.00*0.75*0.64
YGCO-0001-00 Colimator 915 0.304 0.200 0.053 0.000 0.788 4.5*0.5*0.45
YGCO-0006-00 Colimator 905 0.500 0.290 0.000 0.000 0.000 10.5*11.0*0.800
YGCO-0002-00 Colimator 915 5.675 1.200 0.053 0.000 0.154 3.0*2.0*1.5
YGCO-0007-00 Colimator 905 0.500 0.290 0.000 0.000 0.000 10.5*11.0*0.896
YGCO-0003-00 Colimator 905 0.500 0.290 0.000 0.000 0.000 10.5*11.0*0.896
YGCO-0008-00 Colimator 905 0.500 0.290 0.000 0.000 0.000 0.5*11.0*0.800
YGCD-0005-00 Colimator 976 0.300 0.480 0.070 0.800 4.0*0.54*0.43
YGCD-0001-00 Colimator 950 0.300 0.380 0.070 0.667 4.2*0.6*0.41
YGCD-0003-00 Colimator 976 0.310 0.310 0.070 0.500 4.0*0.5*0.43
YGCD-0007-00 Colimator 905 7.340 3.500 6.500 0.239 6.0*5.0*1.50
YGCD-0004-00 Colimator 976 12.590 2.200 12.000 0.087 3.5*4.0*2.0
YGCD-0008-00 Colimator 905 22.953 22.500 0.096 6.0*5.0*2.0
YGCD-0002-00 Colimator 7.362 3.250 5.000 0.260 4.2*4.0*2.0
YGCD-0010-00 Colimator 978 0.310 0.480 0.070 0.800 4.00*5.00*2.50

Collimator type

Lens configuration Aspheric glass lens
Material Optical glass (RoHS compliant)
Lens size 0.6 ㎜ over
Antireflection film Dual-side multi-layer coating
Operating temperature -40℃ to 85℃
Storage temperature -40℃ to 100℃
Temperature and humidity resistance +85℃ at 85%RH
Storage temperature -40℃ to 100℃
Tolerance H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛
