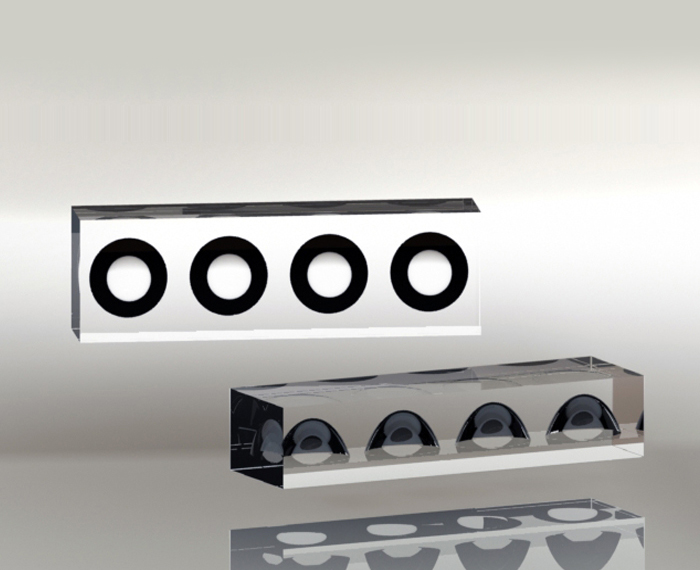

Hybrid Array Lens
Hybrid Array Lens is manufactured through hybrid molding method which is originally developed by MPNICS through optimized manufacturing technology.

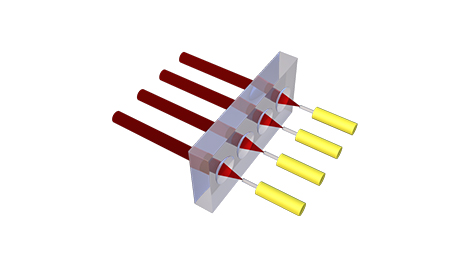

- Micro lens arrays for fiber coupling and optical switching
- Micro lenses for collimation of laser diodes and VCSELs, Fiber Array optics with precise lens positioning
- Lens profiles : Plano-convex, aspherics
- 1D and large 2D array configurations
- High Transmission with Low Insertion Loss
Collimator type
| Lens configuration | Aspheric glass lens |
| Material | Optical glass (RoHS compliant) |
| Lens size | 0.6 ㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Storage temperature | -40℃ to 100℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | -40℃ to 100℃ |

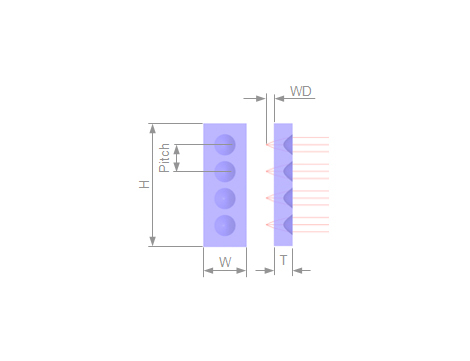

| Tolerance | H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛ |
