Monolithic Lens

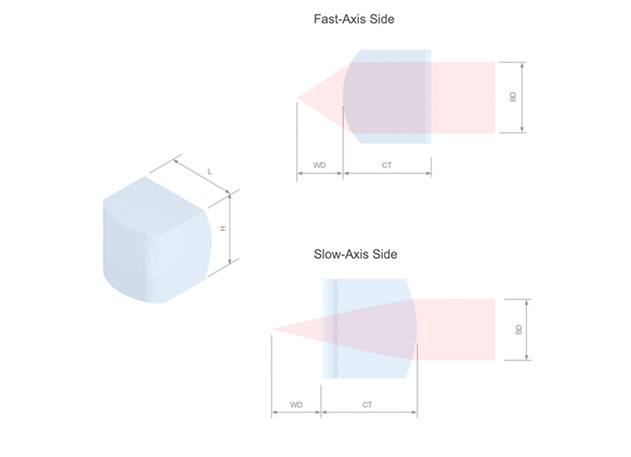

The Monolithic Collimator has two opposing crossed cylindrical surfaces with different focal lengths and is optimized to collimate the beam simultaneously in fast-axis and slow-axis.
- Material : Optical glass (RoHS compliant)
- Optimal performance using Aspheric shape
- Laser quality Anti-reflective coated optics for maximum efficiency
- Collimates & Circularizes the Output of a Laser Diode
- AR Coated Wavelength Range: 700 – 1100 nm
- Focal Lengths from 0.05 mm to 0.15 mm
Monolithic Collimators
| Configuration | Glass Molded Cylindrical Lens |
| Material | Optical glass (RoHS compliant) |
| Size | 0.5㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | 23±5℃ |
| Storage humidity | 45±5% |
