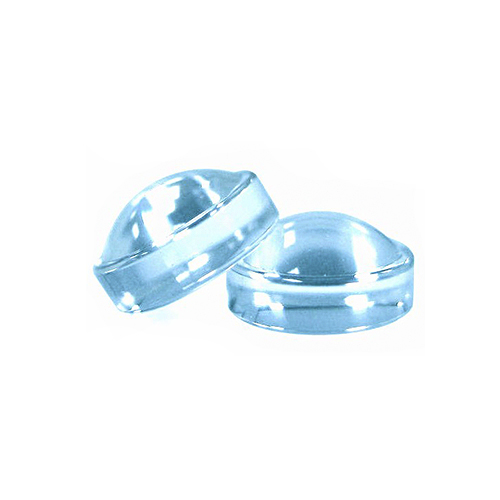

micro round lens
:

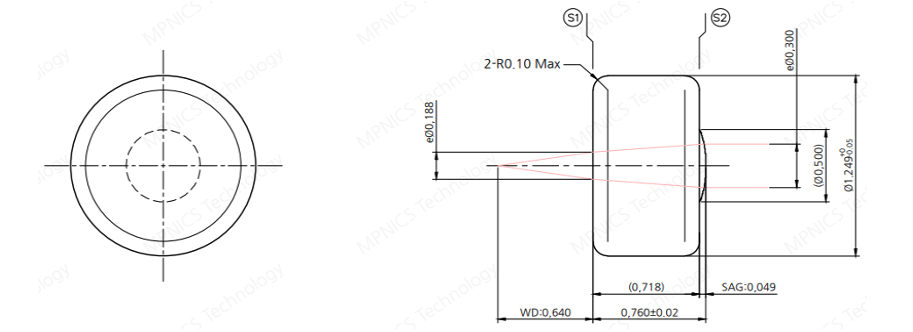

BVCD-0012-00 / Collimator type / 1550nm / EFL=1.038mm / NA=0
| Product No. | BVCD-0012-00 |
| Type | Collimator |
| Center WL(λ㎚) | 1550 |
| AR coating WL(λnm) | 1250-1650 |
| EFL(㎜) | 1.038 |
| L1(㎜) | 0.64 |
| NA | 0 |
| BD | 0.3 |
| Dimension(㎜) | Ø1.249XT0.76 |
BVCD-0012-00 / Collimator type / 1550nm / EFL=1.038mm / NA=0
WL=Wave Length, EFL=Effective Focal Length, M=Magnification, L1=WD, BD=Beam Diameter, P=Pitch, NOL=Number of lenses
| Product No. | Type | Center WL(λnm) | AR coating WL(λnm) | EFL(mm) | L1(mm) | BD(mm) | OI(mm) | M | NA |
| BVCD-0012-00 | Collmator | 1550 | 1250~1650 | 1.038 | 0.640 | 0.300 | 0 | 0 | 0 |
