micro round lens
:
BVCD-0019-00
Product No. | BVCD-0002-00 |
Type | Collimator |
Center WL(λ㎚) | 1550 |
EFL(㎜) | 0.55 |
L1(㎜) | 0.29 |
NA | 0.47 |
BD | 0.48 |
Dimension(㎜) | Ø1.0XT0.59 |

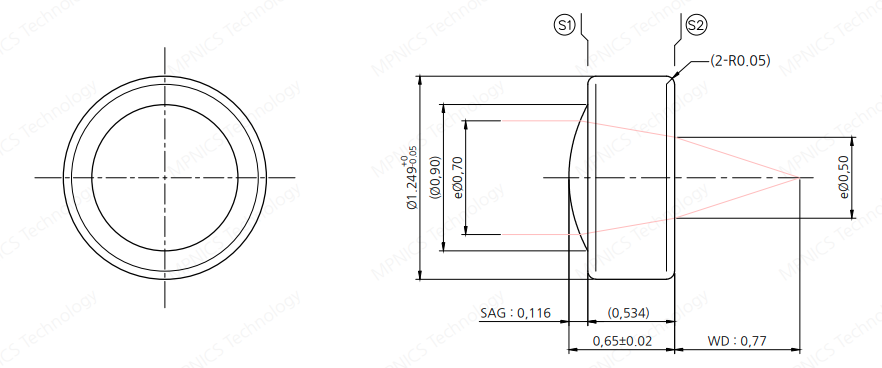

Specification
Item | Unit | Value |
Part Number | BVCD-0019-00 | |
Type | Collimator Lenses | |
Center Wave Length | λ nm | 1310 |
AR Coating Wave Length | λ nm | 1250~1650 |
Effective Focal Length | mm | 1.154 |
Beam Diameter | mm | 0.700 |
Working Distance (L1) | mm | 0.770 |
Numercial Aperture (Object) | 0.300 | |
Size (W×H×CT) | mm | Ø1.249*T0.650 |
Material | Optical Glass(RoHS compliant) |
