micro round lens
:
BVCD-0025-00
| Product No. | BVCD-0002-00 |
| Type | Collimator |
| Center WL(λ㎚) | 1550 |
| EFL(㎜) | 0.55 |
| L1(㎜) | 0.29 |
| NA | 0.47 |
| BD | 0.48 |
| Dimension(㎜) | Ø1.0XT0.59 |

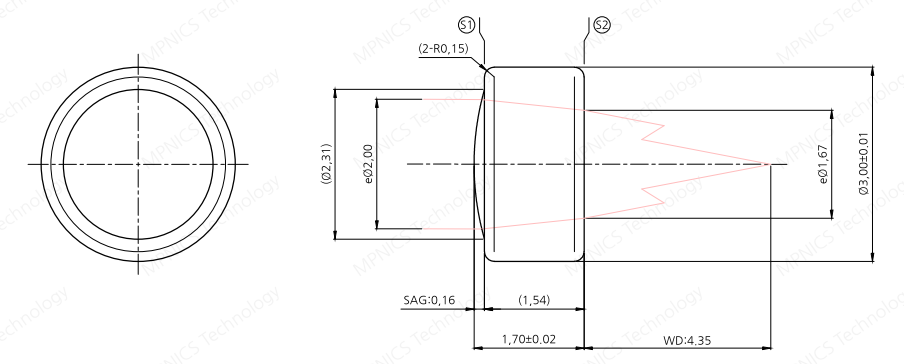

Specification
| Item | Unit | Value |
| Part Number | BVCD-0025-00 | |
| Type | Collimator Lenses | |
| Center Wave Length | λ nm | 960 |
| AR Coating Wave Length | λ nm | 940~980 |
| Effective Focal Length | mm | 5.300 |
| Beam Diameter | mm | 2.000 |
| Working Distance (L1) | mm | 4.350 |
| Numercial Aperture (Object) | 0.189 | |
| Size (W×H×CT) | mm | Ø3.000*T1.700 |
| Material | Optical Glass(RoHS compliant) |
