micro round lens
:
BVFO-0001-00
| Product No. | BVFO-0001-00 |
| Type | Coupling |
| Center WL(λ㎚) | 1310 |
| AR coating WL(λnm) | 1290-1570 |
| EFL(㎜) | 0.95 |
| L1(㎜) | 1.337 |
| L2(㎜) | 2.41 |
| OI(㎜) | 4.747 |
| M | 1.7 |
| NA | 0.15/0.09 |

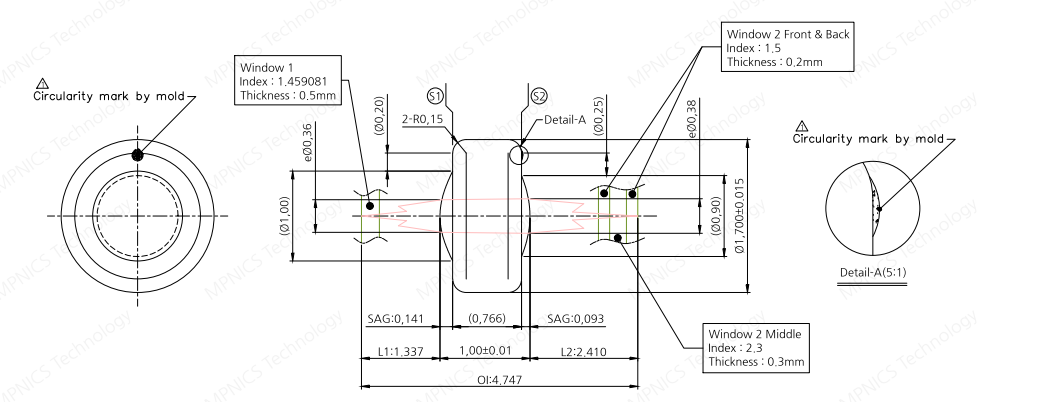

| Dimension(㎜) | Ø1.7XT1.0 |
Specification
| Item | Unit | Value |
| Part Number | BVFO-0001-00 | |
| Type | Coupling Lenses | |
| Center Wave Length | λ nm | 1310 |
| AR Coating Wave Length | λ nm | 1290~1570 |
| Effective Focal Length | mm | 0.950 |
| Beam Diameter | mm | |
| Working Distance (L1) | mm | 1.337 |
| Numercial Aperture (Object) | 0.150 | |
| Size (W×H×CT) | mm | Ø1.700*T1.000 |
| Material | Optical Glass(RoHS compliant) |
