CVFO-0004-00
| Product No. | CVFO-0004-00 |
| Type | Coupling |
| Center WL(λ㎚) | 1310 |
| AR coating WL(λnm) | 1290-1570 |
| EFL(㎜) | 0.873 |
| L1(㎜) | 0.55 |
| L2(㎜) | 0.585 |
| OI(㎜) | 7.5 |
| M | 4.5 |
| NA | 0.45/0.1 |

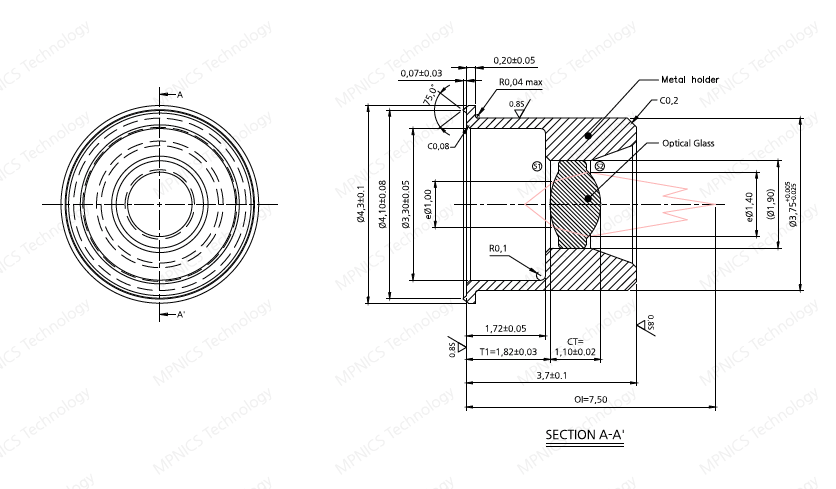

| Dimension(㎜) | Ø3.75XT3.7 |
Specification
| Item | Unit | Value |
| Part Number | CVFO-0004-00 | |
| Type | Coupling Lenses | |
| Center Wave Length | λ nm | 1310 |
| AR Coating Wave Length | λ nm | 1260~1610 |
| Effective Focal Length | mm | 1.127 |
| Beam Diameter | mm | |
| Working Distance (L1) | mm | 1.000 |
| Numercial Aperture (Object) | 0.400 | |
| Size (W×H×CT) | mm | Ø4.3*3.7 |
| Material | Optical Glass(RoHS compliant) |
