CVFO-0006-00
| Product No. | CVFO-0006-00 |
| Type | Coupling |
| Center WL(λ㎚) | 1310 |
| AR coating WL(λnm) | 1270-1570 |
| EFL(㎜) | 0.94 |
| L1(㎜) | 0.97 |
| L2(㎜) | 3.76 |
| OI(㎜) | 5.73 |
| M | 2 |
| NA | 0.4/0.2 |

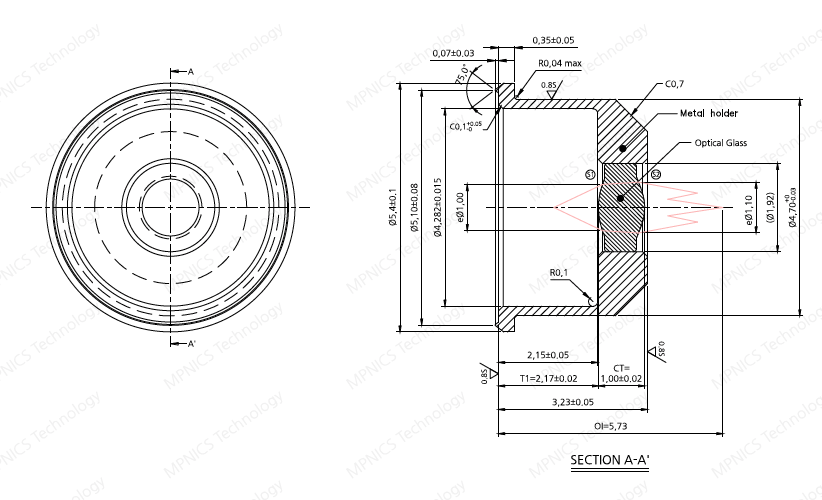

| Dimension(㎜) | Ø4.7XT3.23 |
Specification
| Item | Unit | Value |
| Part Number | CVFO-0006-00 | |
| Type | Coupling Lenses | |
| Center Wave Length | λ nm | 1310 |
| AR Coating Wave Length | λ nm | 1310~1550 |
| Effective Focal Length | mm | 1.116 |
| Beam Diameter | mm | |
| Working Distance (L1) | mm | 1.000 |
| Numercial Aperture (Object) | 0.500 | |
| Size (W×H×CT) | mm | Ø4.3*T3.7 |
| Material | Optical Glass(RoHS compliant) |
