HVFO-0001-00
| Product No. | HVFO-0001-00 |
| Type | Coupling |
| Center WL(λ㎚) | 405 |
| AR coating WL(λnm) | 385~425 |
| EFL(㎜) | 1.685 |
| L1(㎜) | 1.43 |
| L2(㎜) | 8.96 |
| OI(㎜) | 11.99 |
| M | 4 |
| NA | 0.4/0.1 |

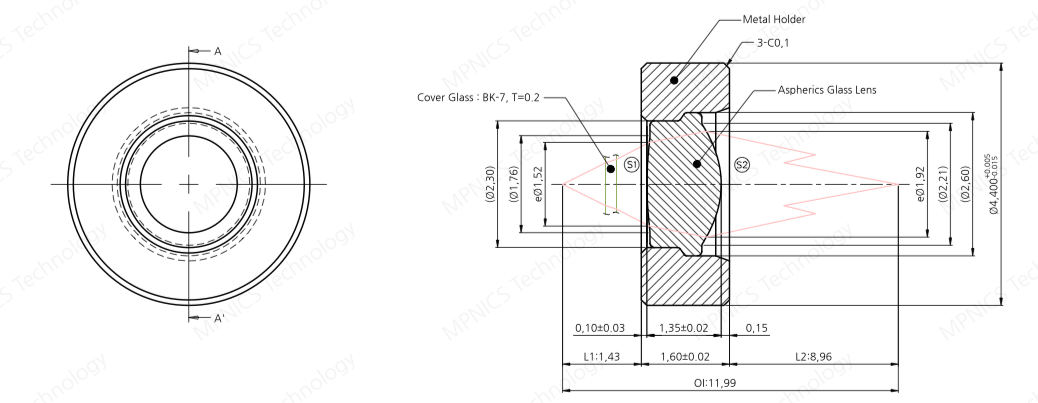

| Dimension(㎜) | Ø4.4XT1.6 |
Specification
| Item | Unit | Value |
| Part Number | HVFO-0001-00 | |
| Type | Coupling Lenses | |
| Center Wave Length | λ nm | 405 |
| AR Coating Wave Length | λ nm | 385~425 |
| Effective Focal Length | mm | 1.685 |
| Beam Diameter | mm | |
| Working Distance (L1) | mm | 1.430 |
| Numercial Aperture (Object) | 0.400 | |
| Size (W×H×CT) | mm | Ø4.4*1.6 |
| Material | Optical Glass(RoHS compliant) |
