SGCD-0048-00 / Collimator type / 1550nm / EFL=0.891mm / NA=0
| Product No. | SGCD-0048-00 |
| Type | Collimator |
| Center WL(λ㎚) | 1550 |
| AR coating WL(λnm) | 1400-1650 |
| EFL(㎜) | 0.891 |
| L1(㎜) | 0.496 |
| NA | 0 |
| BD(㎜) | 0.26 |

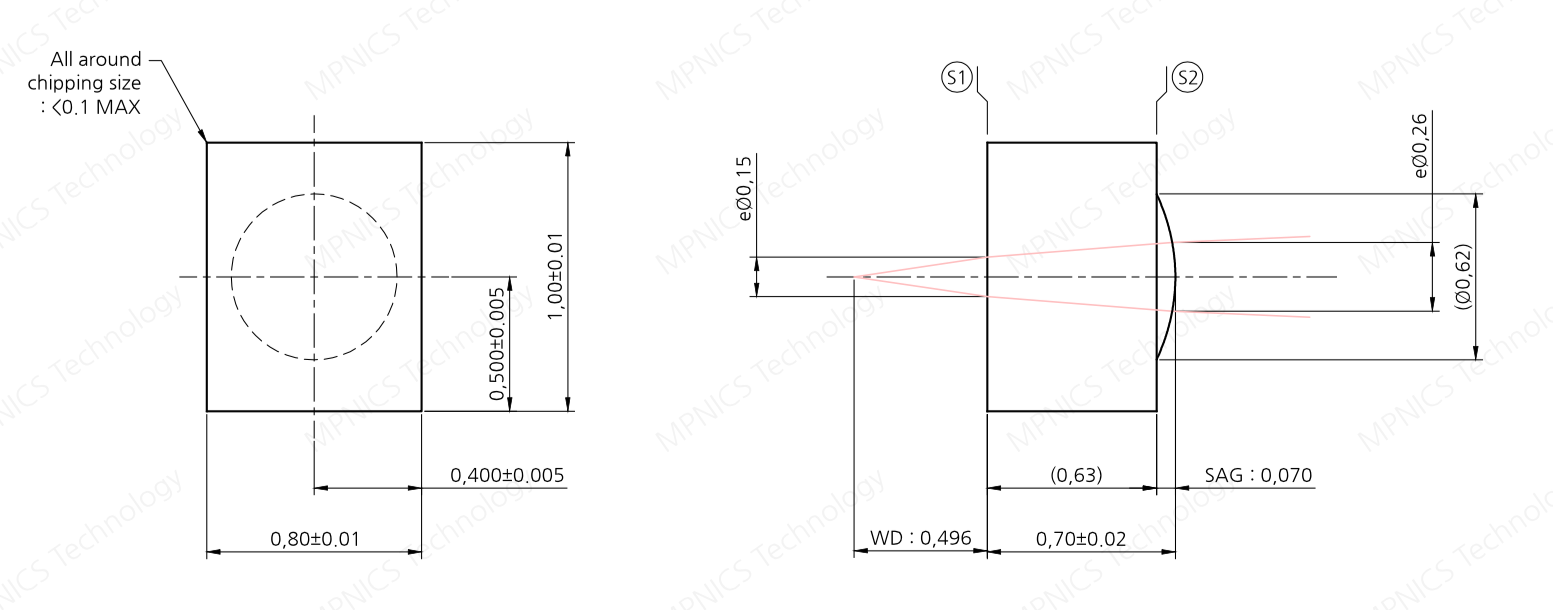

| Dimension(㎜) | 0.8X1.0XT0.7 |
SGCD-0048-00 / Collimator type / 1550nm / EFL=0.891mm / NA=0
WL=Wave Length, EFL=Effective Focal Length, M=Magnification, L1=WD, BD=Beam Diameter, P=Pitch, NOL=Number of lenses
| Product No. | Type | Center WL(λnm) | AR coating WL(λnm) | EFL(mm) | L1(mm) | L2(mm) | OI(mm) | M | NA | BD(mm) |
| SGCD-0048-00 | Collimator | 1,550 | 1400-1650 | 0.891 | 0.496 | 0 | 0 | 0 | 0 | 0.26 |
