SGFD-0005-00
| Product No. | SGFD-0005-00 |
| Type | Coupling |
| Center WL(λ㎚) | 1310 |
| AR coating WL(λnm) | 1250-1650 |
| EFL(㎜) | 0.425 |
| L1(㎜) | 0.3 |
| L2(㎜) | 1 |
| OI(㎜) | 2 |
| M | 0 |
| NA | 0.375/0.19 |
| BD(㎜) | 0 |

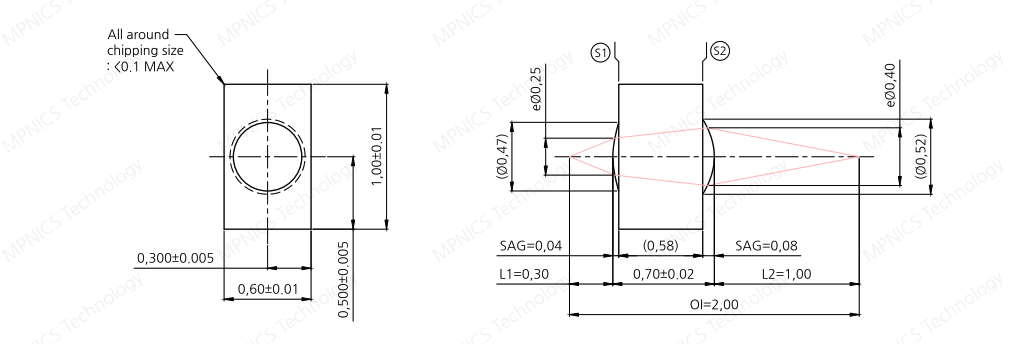

| Dimension(㎜) | 0.6X1.0XT0.7 |
Specification
| Item | Unit | Value |
| Part Number | SGFD-0005-00 | |
| Type | Coupling Lenses | |
| Center Wave Length | λ nm | 1310 |
| AR Coating Wave Length | λ nm | 1250~1650 |
| Effective Focal Length | mm | 0.425 |
| Beam Diameter | mm | |
| Working Distance (L1) | mm | 0.300 |
| Numercial Aperture (Object) | 0.375 | |
| Size (W×H×CT) | mm | 0.6*1.0*0.7 |
| Material | Optical Glass(RoHS compliant) |
