SGFD-0006-00
| Product No. | SGFD-0006-00 |
| Type | Coupling |
| Center WL(λ㎚) | 1530 |
| AR coating WL(λnm) | 1450~1600 |
| EFL(㎜) | 0.743 |
| L1(㎜) | 1.8 |
| L2(㎜) | 0.87 |
| OI(㎜) | 3.47 |
| M | 0.776 |
| NA | 0.087/0.112 |
| BD(㎜) | 0 |

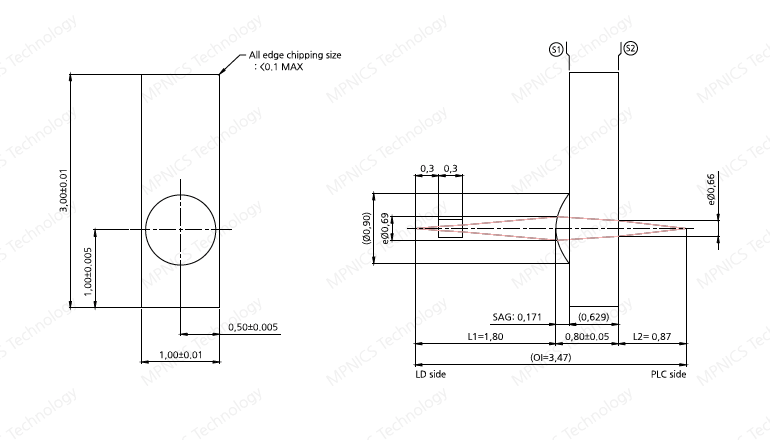

| Dimension(㎜) | 1.0X3.0XT0.8 |
Specification
| Item | Unit | Value |
| Part Number | SGFD-0006-00 | |
| Type | Coupling Lenses | |
| Center Wave Length | λ nm | 1530 |
| AR Coating Wave Length | λ nm | 1450~1600 |
| Effective Focal Length | mm | 0.743 |
| Beam Diameter | mm | |
| Working Distance (L1) | mm | 1.800 |
| Numercial Aperture (Object) | 0.087 | |
| Size (W×H×CT) | mm | 1.0*3.0*0.8 |
| Material | Optical Glass(RoHS compliant) |
