SGFD-0016-00
| Product No. | SGFD-0016-00 |
| Type | Coupling |
| Center WL(λ㎚) | 520 |
| EFL(㎜) | 0.145 |
| L1(㎜) | 0.03 |
| L2(㎜) | 0.455 |
| OI(㎜) | 0.755 |
| M | 2.2 |
| NA | 0.33/0.15 |
| BD(㎜) | 0 |

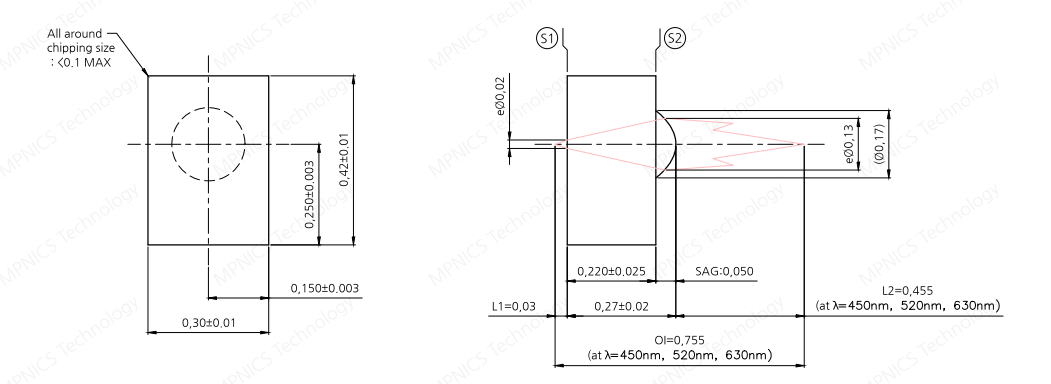

| Dimension(㎜) | 0.3X0.42XT0.27 |
Specification
| Item | Unit | Value |
| Part Number | SGFD-0016-00 | |
| Type | Coupling Lenses | |
| Center Wave Length | λ nm | 520 |
| AR Coating Wave Length | λ nm | 450~635 |
| Effective Focal Length | mm | 0.143 |
| Beam Diameter | mm | |
| Working Distance (L1) | mm | 0.030 |
| Numercial Aperture (Object) | 0.330 | |
| Size (W×H×CT) | mm | 0.3*0.42*T0.27 |
| Material | Optical Glass(RoHS compliant) |
