SGFD-0017-00
| Product No. | SGFD-0017-00 |
| Type | Coupling |
| Center WL(λ㎚) | 1300 |
| AR coating WL(λnm) | 1250-1650 |
| EFL(㎜) | 0.512 |
| L1(㎜) | 0.26 |
| L2(㎜) | 1.44 |
| OI(㎜) | 2.6 |
| M | 2.707 |
| NA | 0.566/0.209 |
| BD(㎜) | 0 |

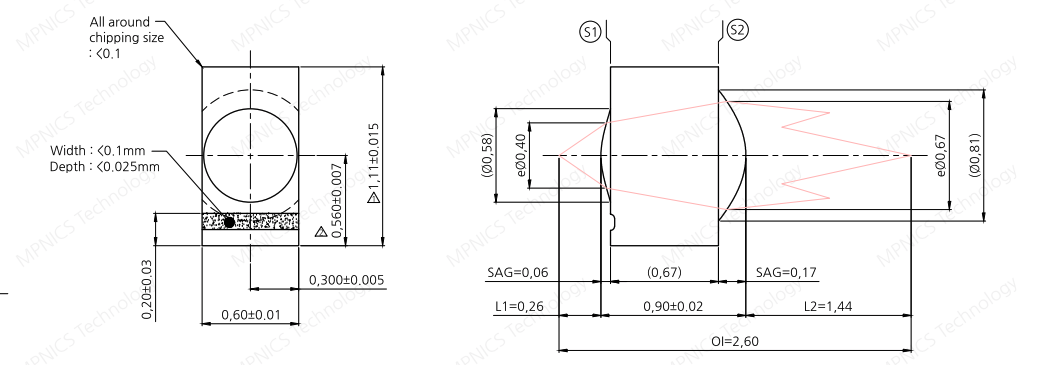

| Dimension(㎜) | 1.0X0.6XT0.9 |
Specification
| Item | Unit | Value |
| Part Number | SGFD-0017-00 | |
| Type | Coupling Lenses | |
| Center Wave Length | λ nm | 1300 |
| AR Coating Wave Length | λ nm | 1250~1650 |
| Effective Focal Length | mm | 0.512 |
| Beam Diameter | mm | |
| Working Distance (L1) | mm | 0.260 |
| Numercial Aperture (Object) | 0.566 | |
| Size (W×H×CT) | mm | 1.11*0.6*0.9 |
| Material | Optical Glass(RoHS compliant) |
