micro square lens
:
SGFD-0040-00
| Product No. | SGCD-0033 |
| Type | Collimator |
| Center WL(λ㎚) | 1550 |
| AR coating WL(λnm) | 1250-1650 |
| EFL(㎜) | 1.71 |
| L1(㎜) | 1.317 |
| L2(㎜) | 0 |
| OI(㎜) | 0 |
| M | 0 |
| NA | 0.146 |
| BD(㎜) | 0.5 |
| Dimension(㎜) | 1.0X0.7XT0.7 |

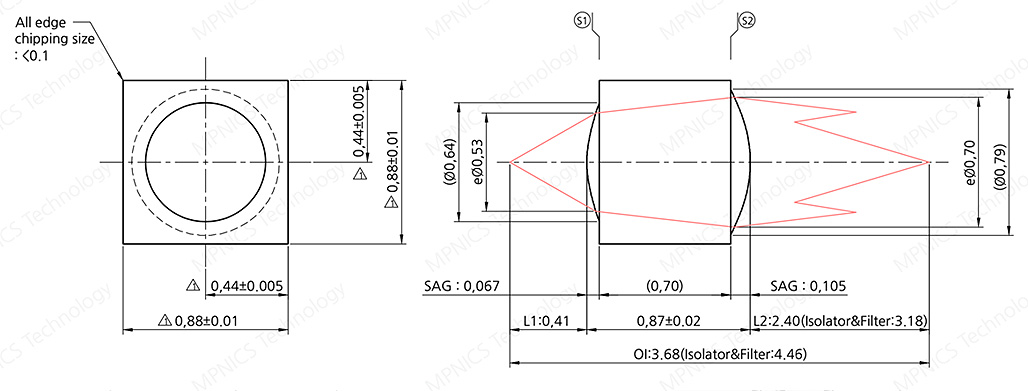

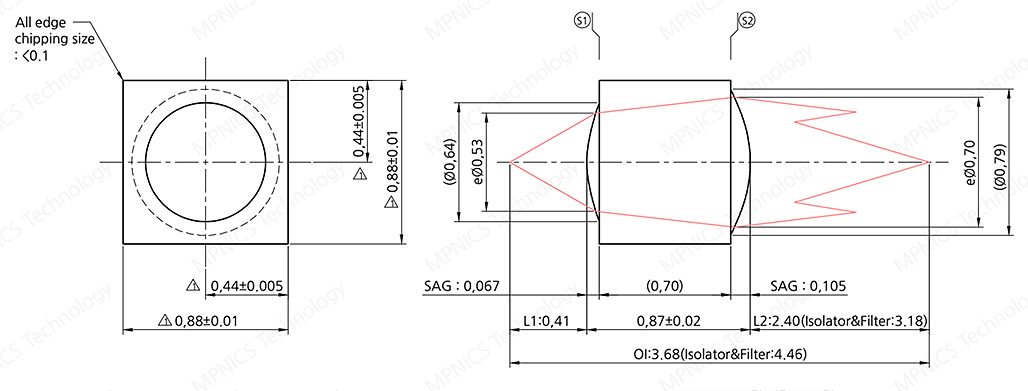

Specification
| Item | Unit | Value |
| Part Number | SGFD-0040-00 | |
| Type | Coupling Lenses | |
| Center Wave Length | λ nm | 1550 |
| AR Coating Wave Length | λ nm | 1520~1580 |
| Effective Focal Length | mm | 0.565 |
| Beam Diameter | mm | |
| Working Distance (L1) | mm | 0.410 |
| Numercial Aperture (Object) | 0.500 | |
| Size (W×H×CT) | mm | 0.880*0.880*0.870 |
| Material | Optical Glass(RoHS compliant) |
