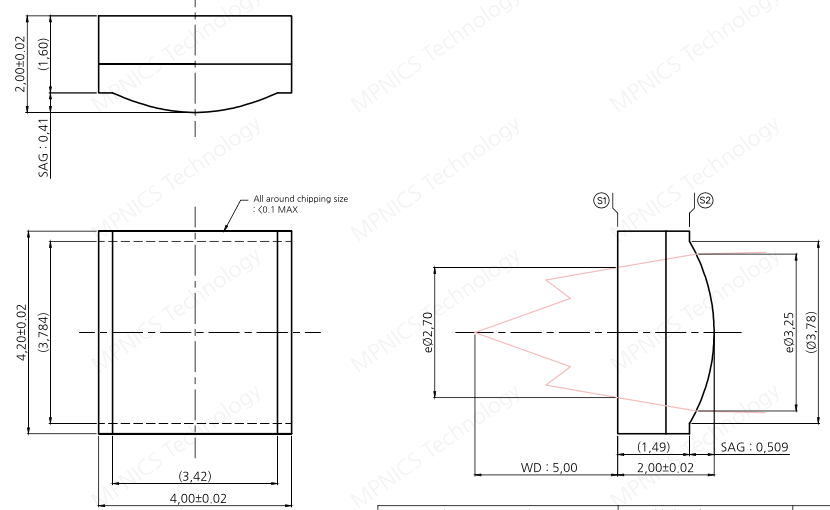

YGCO-0002-00 / Collimator type / 915nm / EFL=5.675mm / NA=0.154
| Product No. | YGCO0002-00 |
| Type | Collimator |
| Center WL(λ㎚) | 915 |
| AR coating WL(λnm) | 870~940 |
| EFL(㎜) | 5.675 |
| L1(㎜) | 4.83 |
| NA | 0.154 |
| BD(㎜) | 1.2 |
| Dimension(㎜) | 3.0X2.0XT1.5 |
YGCO-0002-00 / Collimator type / 915nm / EFL=5.675mm / NA=0.154
WL=Wave Length, EFL=Effective Focal Length, M=Magnification, L1=WD, BD=Beam Diameter, P=Pitch, NOL=Number of lenses
| Product No. | Type | Center WL(λnm) | AR coating WL(λnm) | EFL(mm) | L1(mm) | L2(mm) | OI(mm) | M | NA | BD(mm) |
| YGCO-0002-00 | Collimator | 915 | 885~945 | 5.675 | 4.830 | 0 | 0 | 0 | 0.154 | 1.200 |
