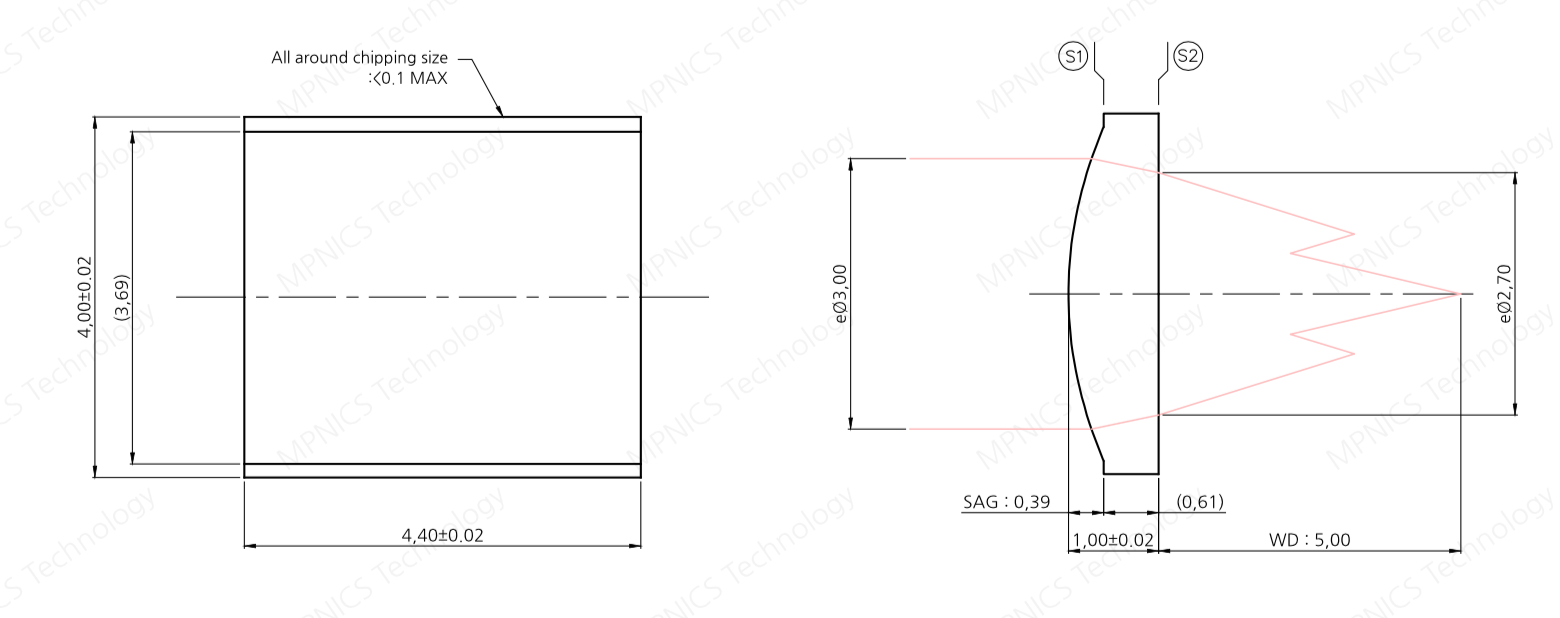

YGCO-0004-00 / Collimator type / 905nm / EFL=5.601mm / NA=0
| Product No. | YGCO0004-00 |
| Type | Collimator |
| Center WL(λ㎚) | 905 |
| AR coating WL(λnm) | 870~940 |
| EFL(㎜) | 5.601 |
| L1(㎜) | 5 |
| NA | 0 |
| BD(㎜) | 3 |
| Dimension(㎜) | 4.4X4.0XT1.0 |
YGCO-0004-00 / Collimator type / 905nm / EFL=5.601mm / NA=0
WL=Wave Length, EFL=Effective Focal Length, M=Magnification, L1=WD, BD=Beam Diameter, P=Pitch, NOL=Number of lenses
| Product No. | Type | Center WL(λnm) | AR coating WL(λnm) | EFL(mm) | L1(mm) | L2(mm) | OI(mm) | M | NA | BD(mm) |
| YGCO-0004-00 | Collimator | 905 | 870~940 | 5.601 | 5.000 | 0 | 0 | 0 | 0 | 3.000 |
