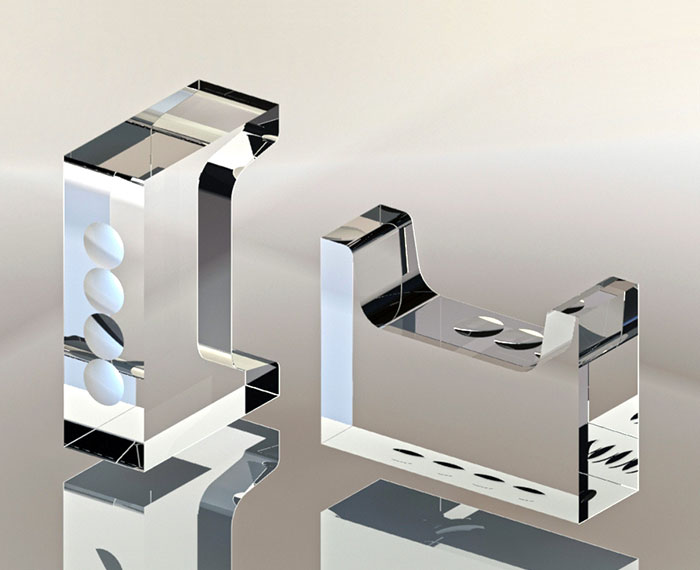

Rib lens array
Micro lens array is manufactured through hybrid molding method which is originally developed by MPNICS through optimized manufacturing technology.
- DWDM (MUX, DeMUX, Optical add/drop)
- Optical Switches, Amplifiers, and Isolators
- Variable Optical Attenuators
- Waveguide to Fiber Coupling
- Lens profiles : Plano-convex, aspherics

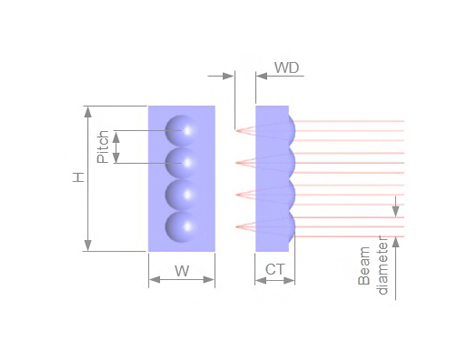

Collimator type
| Lens configuration | Aspheric glass lens |
| Material | Optical glass (RoHS compliant) |
| Lens size | 0.6 ㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Storage temperature | -40℃ to 100℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | -40℃ to 100℃ |
| Tolerance | H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛ |

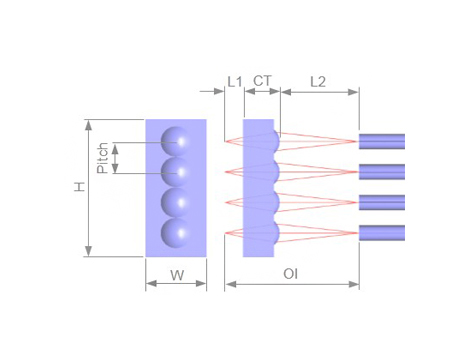

Coupling type
| Lens configuration | Aspheric glass lens |
| Material | Optical glass (RoHS compliant) |
| Lens size | 0.6 ㎜ over |
| Antireflection film | Dual-side multi-layer coating |
| Operating temperature | -40℃ to 85℃ |
| Storage temperature | -40℃ to 100℃ |
| Temperature and humidity resistance | +85℃ at 85%RH |
| Storage temperature | -40℃ to 100℃ |
| Tolerance | H±10 ㎛, H1±5 ㎛, W±10 ㎛, W1±5 ㎛, CT±10 ㎛ |
